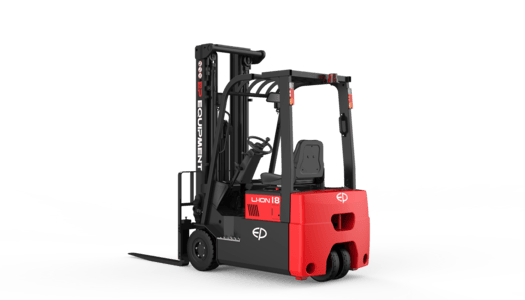

LI-ION THREE-WHEEL COUNTERBALANCE FORKLIFT
1.5/1.8/2.0T
EP INNOVATION
Fully designed around the advantages of lithium-ion technology, the TVL series features a compact size for narrow aisle warehouse applications and ensures the best in operation comfort and stability.
This 3-wheel electric forklift is powered by dual drive motors, greatly improving the productivity.

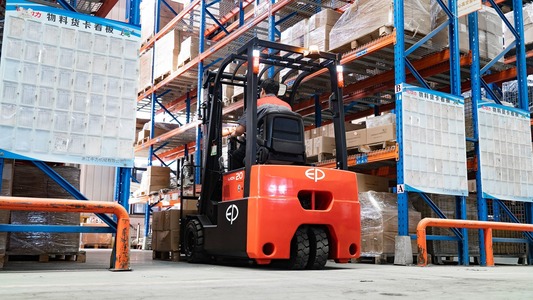

- Narrow Aisle: This counterbalance forklift can be used for a range of work applications including indoor warehousing and narrow aisle, with a turning radius starting from 1450mm for CPD15TVL to 1585mm for CPD20TVL.
- Loading/Unloading: It offers great performance in loading and unloading tasks at docks or side bay lorries, supported by its powerful 80V battery. Ideal for the rental business due to its opportunity charging capability.
- Small Size & Turning Radius: Allows for narrow aisle operations, maximizing operation comfort and stability.
- Small Size & Turning Radius: Allows for narrow aisle operations, maximizing operation comfort and stability.
- Large Legroom: As a narrow aisle forklift, it still features with an ergonomic design, offering operators large legroom and operation comfort.
Features
The TVL series forklift comes with a compact-sized 80V/205Ah EP Li-Ion battery and an 80V/35A single-phase integrated charger with 16amp plug allowing the truck to be charged at any power outlet. The Li-Ion battery also provides opportunity charging to be charged during breaks and meet the whole day work. And it communicates via Can-Bus with the truck to ensure efficient usage of the truck at all times.
80 Volt System Offering Powerful Performance
The 80 voltage 2*5.0 kW dual drive motors offer higher power efficiency than regular 48 voltage, thus The TVL Series has greatly enhanced its productivity of 6 working hours per charge.
Compact Truck Size
The TVL Series features a small turning radius, 1450 mm of CPD15TVL, 1550mm of CPD18TVL and 1585mm of CPD20TVL, which makes it a perfect workhorse for small warehouses with narrow aisles within 3.5 m.
Large Legroom
Due to the compact size of EP lithium battery and the ergonomic configuration of the control levers and the foot brake pedal, the small truck offers spacious legroom of 394mm and delivers the best in operation comfort.
Enhanced Mast with Optimal Visibility and Stability
The TVL Series adopts the same high-strengthened mast of CPD20L2, offering the best all-around visibility and great stability with less wobbling even fully loaded.
Resources
Our product portfolio
CAPACITY
1800 KG
BATTERY
80V/205AH LI-ION
CHARGER
INTERNAL
LENGTH TO THE FACE OF FORKS
1913MM
OVERHEAD GUARD HEIGHT
1550MM
DRIVE MOTOR
DUAL
AXLE LOADING, LADEN FRONT/REAR
4415/654KG
CAPACITY
1800 KG
BATTERY
48V/500AH LEAD-ACID
CHARGER
EXTERNAL
LENGTH TO THE FACE OF FORKS
1945MM
TURNING RADIUS
1575MM
DRIVE MOTOR
DUAL
AXLE LOADING, LADEN FRONT/REAR
4640/320KG
