LI-ION COUNTERBALANCE FORKLIFT 5.0T
EP INNOVATION

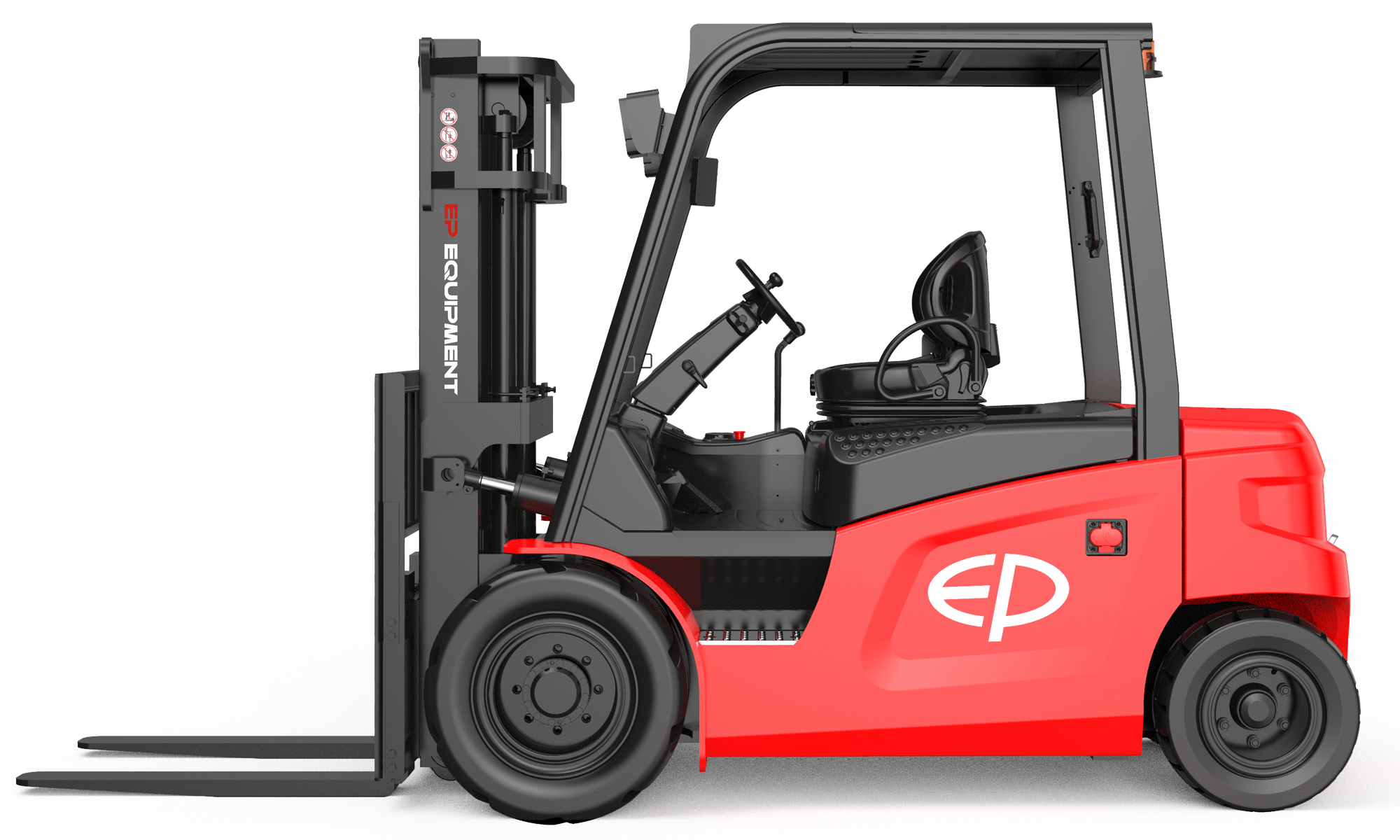

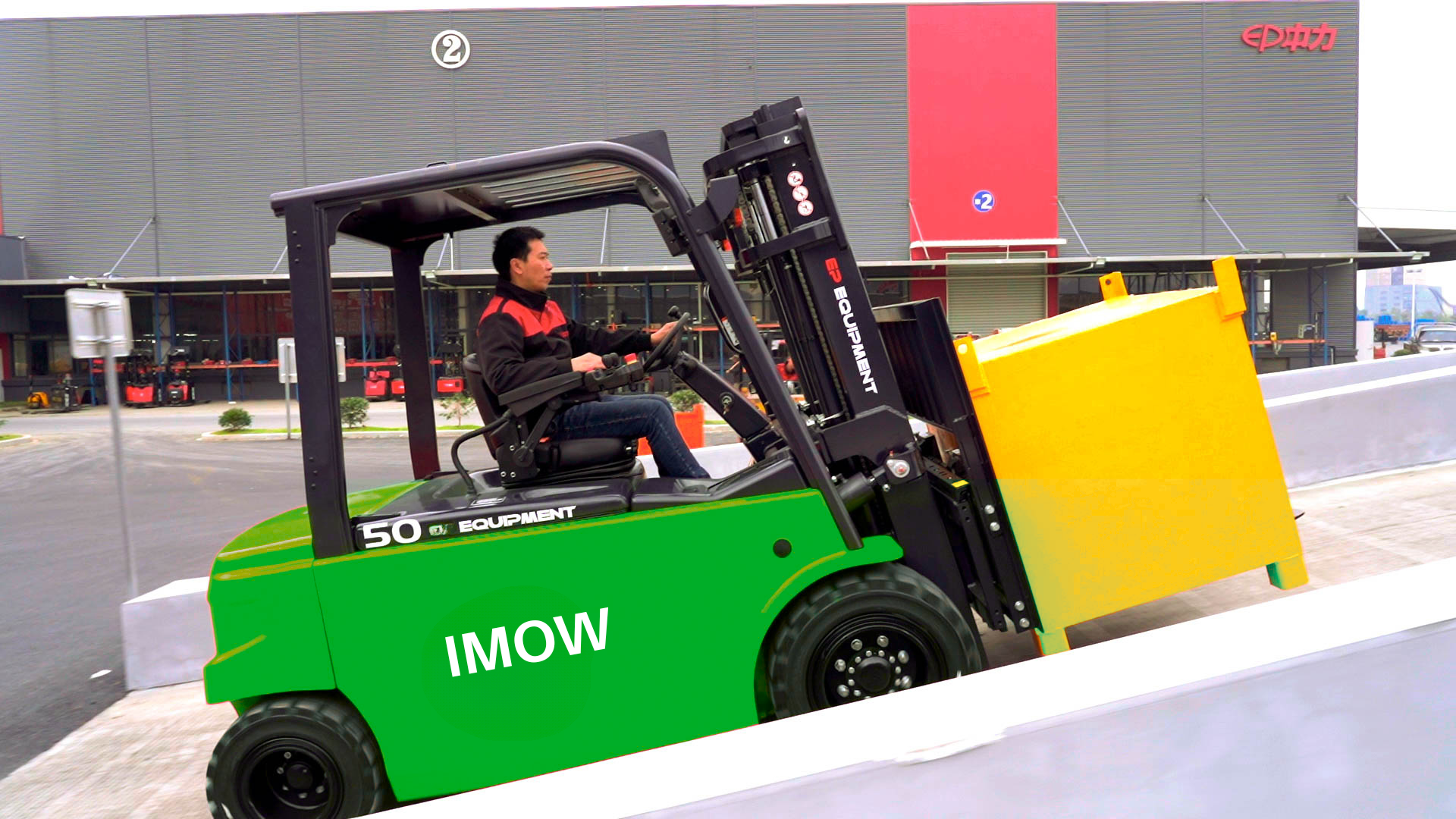

The CPD50L1, an upgraded version of EP’s iconic heavy-duty forklift truck CPD50F8, is designed to meet the evolving demands of modern intralogistics applications. This electric forklift combines aesthetics with functionality, offering an efficient solution for various industries.

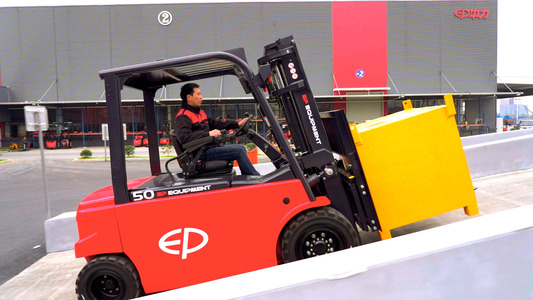

The CPD50L1 counterbalance forklift is suitable for heavy duty, even the most demanding applications, thanks to the various lithium battery options and the improved travel speed.

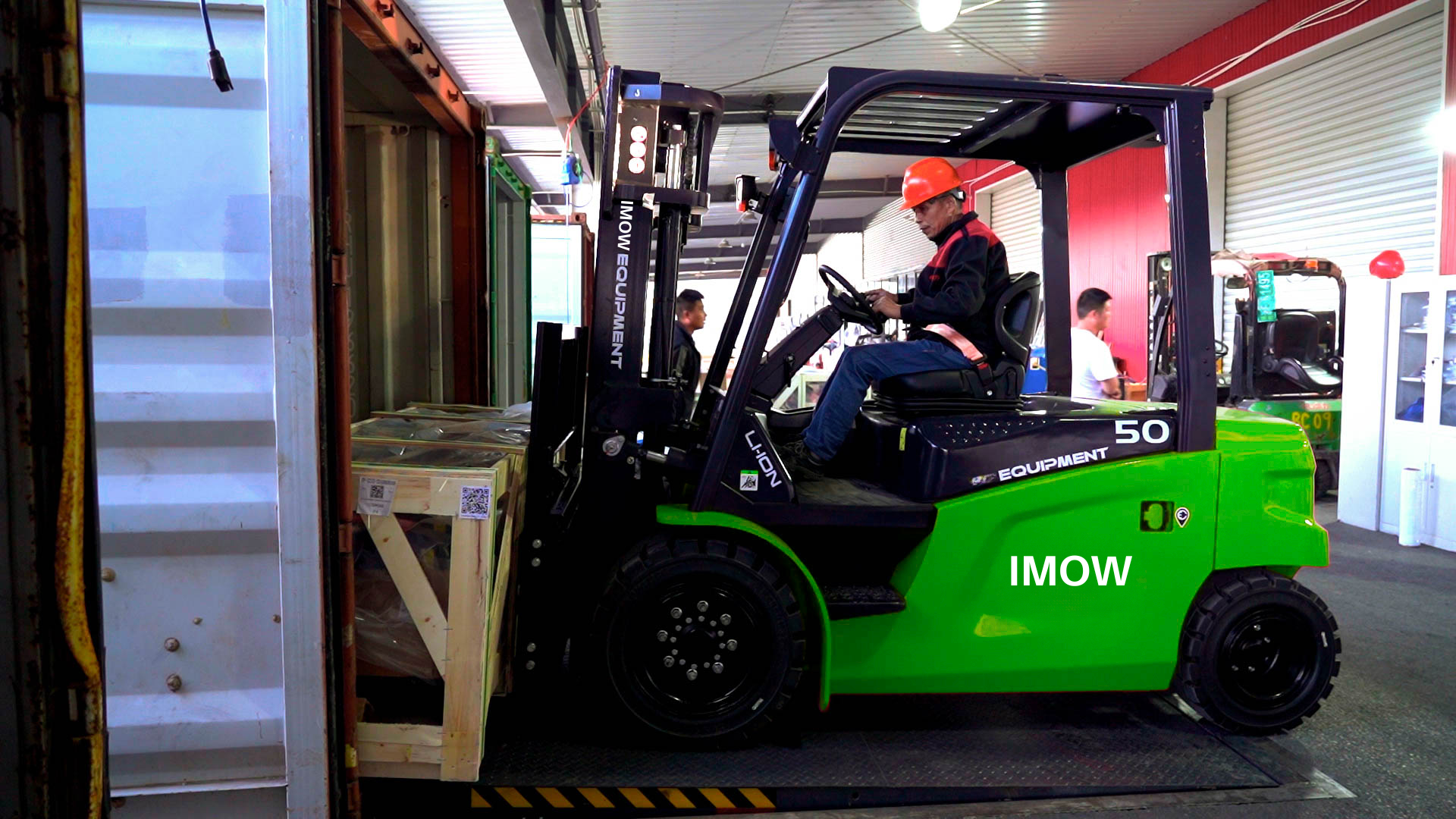

It can deliver great performance to various industries, such as beverage, wood, metal, construction and others. For handling materials in containers, the CPD50L1 with a dedicated mast can fully meet the need due to its proper overhead guard height of 2250mm.
- Optimized Design: Shorter length to face of forks and a high, 2250mm bolted overhead guard for practicality and aesthetics.
- Powerful Battery: Comes standard with an 80V/560Ah lithium battery and an optional 80V/690Ah battery for intensive work.
- Enhanced Maneuverability: Improved travel speed for efficient turnover and a joystick option for comfortable, palm-sized operation.
- Versatile Application: Ideal heavy duty forklift for demanding applications in beverage, wood, metal, construction, and more. Suitable for container handling with a dedicated mast.

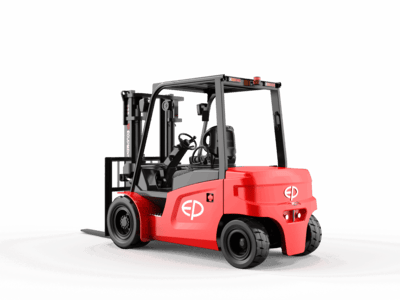

- Compact and Agile: Shorter l2 of 2900mm and a tight turning radius of 2675mm make it easy to maneuver in confined spaces.
- Safe and Secure: Bolted overhead guard offers flexibility for retrofit or replacement, ensuring safe transportation of goods in standard containers.
Features

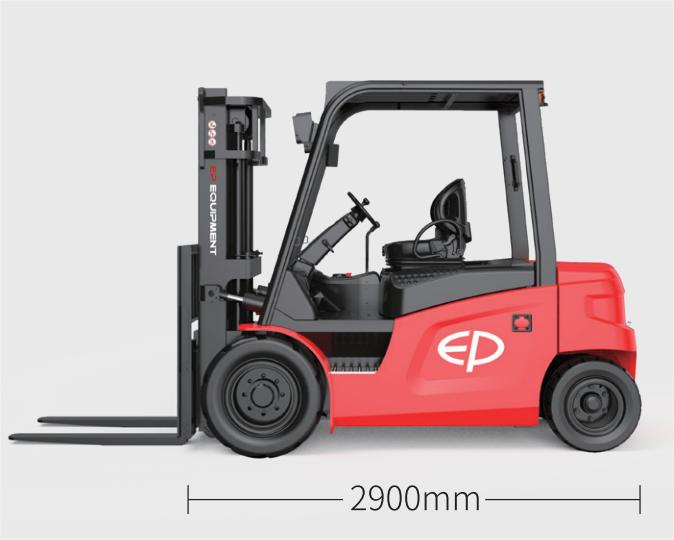

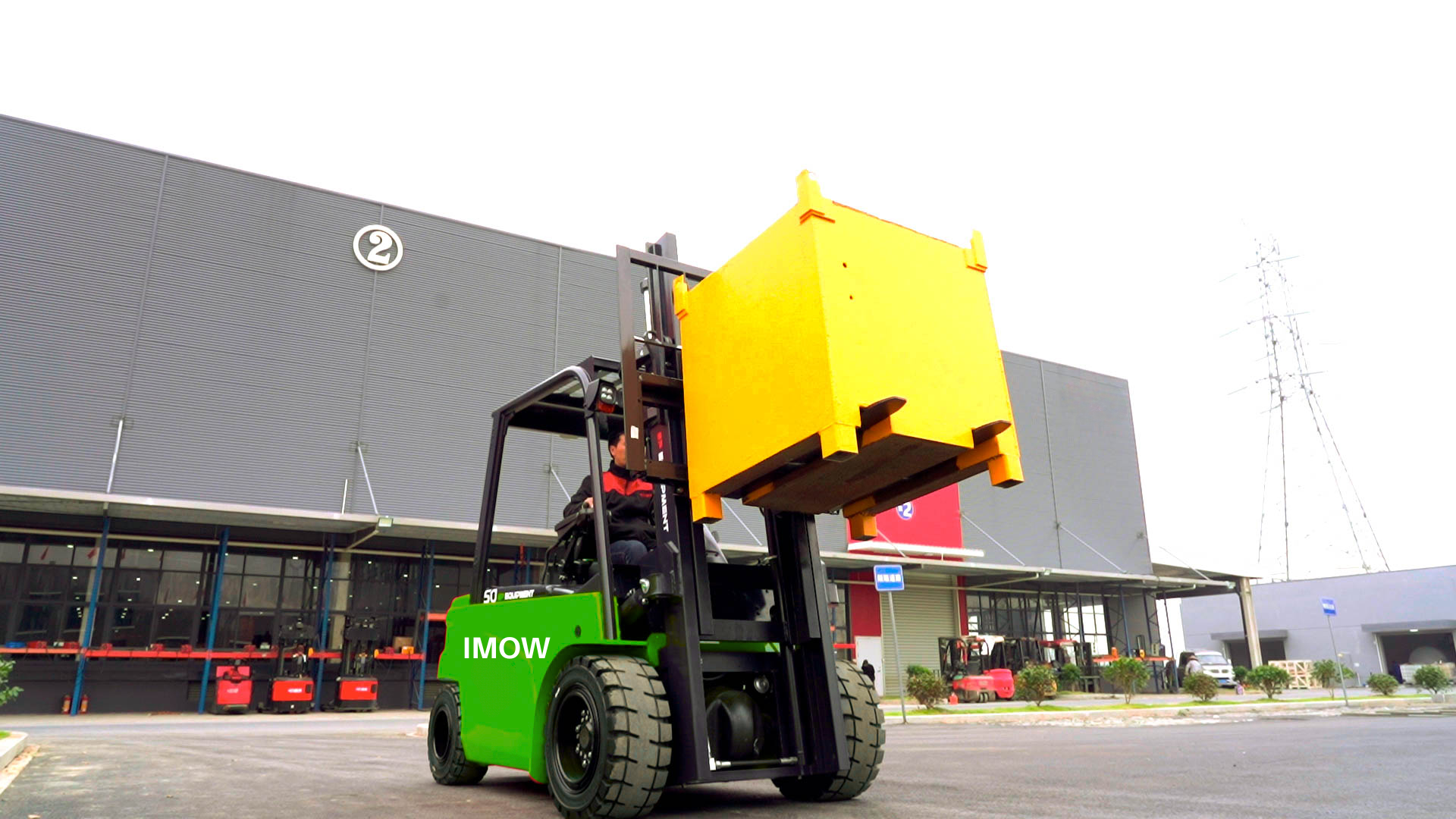

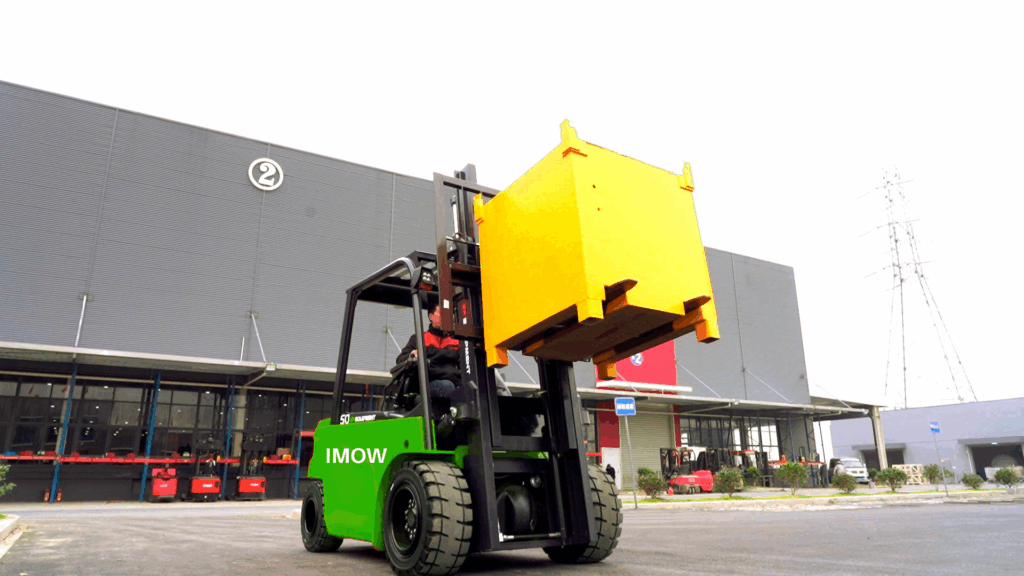

The new design of the CPD50L1 reflects both practicality and beauty. The internal lay-out has been optimized, resulting in shorter l2 of 2900mm and a tighter turning radius of 2675mm. The compact size makes it easy to maneuver in confined spaces.The bolted overhead guard offers maximum flexibility for retrofit or replacement and the height of 2250mm combined with triplex 4,5 meters elevation allows for goods transportation in standard containers.
Different lithium battery capacity options to meet different needs
The CPD50L1 offers two lithium battery options, 80V/560Ah and 80V/690Ah, to meet regular and intensive applications. It is designed around the advantages of lithium technology – opportunity charging, zero maintenance, zero carbon emissions and zero gas emissions during charging, which contributes to convenient and sustainable operation. The practical IP65 external plug provide charging convenience without the need to open the cover.
Fast travel speed for maximum efficiency
Compared to the classic CPD50F8, the travel speed of the CPD50L1 is improved to 16/18km/h, speeding up warehouse turnover and increase transport efficiency.
Joystick option for fatigue-free operation
The CPD50L1 can be fitted with hydraulic joystick controls instead of mechanical levers. Positioned at the end of the armrest, fingertip operation is possible, improving the operator ergonomics with the following controls: all fork hydraulic control including the 4th way, driving direction (F-N-B), horn, emergency stop button.
Ergonomic seat for a comfortable experience
The seat height (h7) is 1208mm from the ground, lower in its category. This makes it easy for the driver to get in and out.
Resources
Our product portfolio
CAPACITY
5000 KG
BATTERY
80V/560AH Li-ion
TRAVEL SPEED
16/18KM/H
LENGTH TO THE FACE OF FORKS
2900MM
OVERHEAD GUARD HEIGHT
2250MM
JOYSTICK OPTION
YES
CAPACITY
1600 KG
BATTERY
80V/700AH LEAD ACID
TRAVEL SPEED
14/14.5KM/H
LENGTH TO THE FACE OF FORKS
2965MM
OVERHEAD GUARD HEIGHT
2353MM
JOYSTICK OPTION
NO
