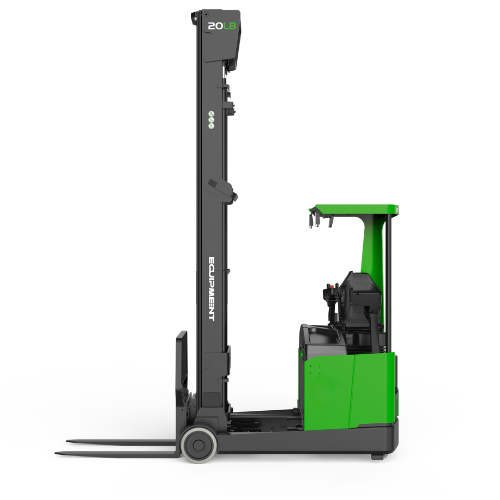

LI-ION REACH TRUCK 1.6/2.0T
EP INNOVATION

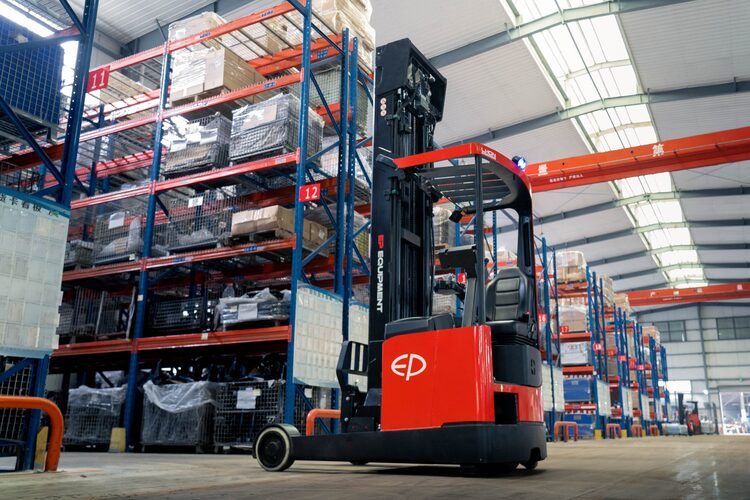

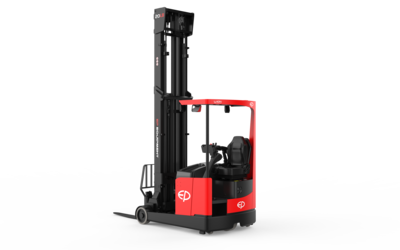

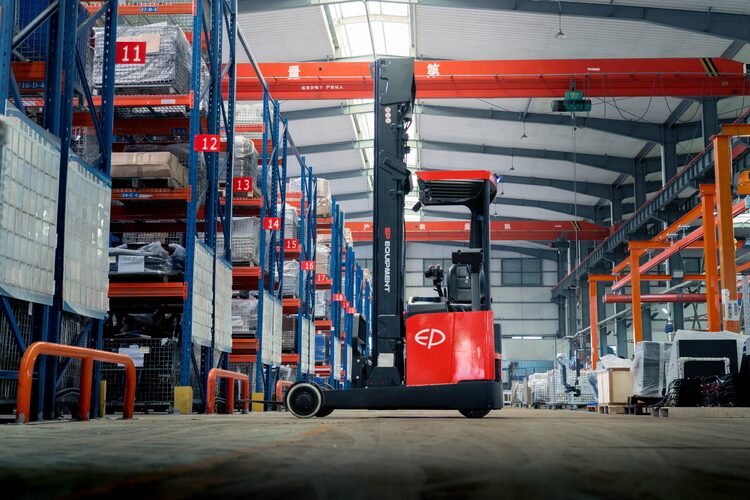

The CQD16/20LB is a convenient Li-ion reach truck with load capacity from 1.6 to 2.0 tons, designed for transporting loads in racking systems of medium to high-level heights. Owing to the enhanced mast, it can reach up to 9.5m maintaining nominal capacity up to 6.9m elevation with optimum visibility and stability. In the spacious operator compartment, there boasts multi-functional control elements such as full-color display, joystick system and proportional lift, making it possible to stack and retrieve goods at ease.
Equipped with 48V Li-ion battery, the CQD16/20LB becomes a flexible and cost-effective tool with the benefits of opportunity charging and zero battery maintenance. The seat can be easily turned sideways, providing a quick access to internal components for fast maintenance and repair.
Lithium powered CQD16/20LB is a productive tool for industries such as logistics, textile, food trade and home appliance manufacturing.
Thanks to opportunity and fast charging, it is also suitable for intensive applications across various business sectors. Plus the assistance configurations, like full-color display and proportional lifting system, CQD16/20LB allows the operator to transport and stack loads quickly and precisely.
- Enhanced mast:It can reach up to 9.5m and perform at full carrying capacity at 6.9m with optimum visibility and stability for the CQD16LB, and 6.5m for the CQD20LB.
- Lithium technology:The CQD16/20LB features a 48V/405Ah(CE)/280Ah(NON-CE) Li-ion battery with zero maintenance, opportunity charging. The external charging plug comes with a protective cover for safe charging.
- High efficiency:With a reach distance of 610mm and maximum lifting/lowering speed of 0.55m/s and 0.5m/s, the CQD16/20LB delivers efficient performance, boosting operational productivity.

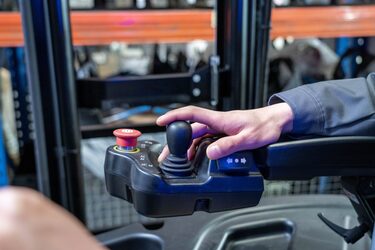

- Multi-functional configurations:It is equipped with full-color display, electric steering with damping, joystick system as wall as proportional lifting system for easy and precise operation.
- Easy maintenance: The seat compartment can be easily turned sideways, offering quick access to internal components for daily maintenance and repair.
Features
CQD16,20LB has great features to improve your daily operations. Our electric reach truck also includes:
Lithium technology for great effectiveness
CQD16/20LB adopts 48V Li-ion battery as standard and it features zero battery maintenance and opportunity charging during breaks. This makes CQD16/20LB a flexible and cost-effective tool to store and retrieve pallets in multi working shifts. Plus, the charging port is external for easy charging and protected by a cover from water and dust ingress for charging safety.
Improved performance for productivity boost
The CQD LB series offers a greater reach distance for effortless stacking and retrieving, 550mm of the CQD16LB and 610mm of the CQD20LB. The lifting and lowering speeds are also improved to reduce your cycle times and elevate your working efficiency.
Complete configurations for easy operation

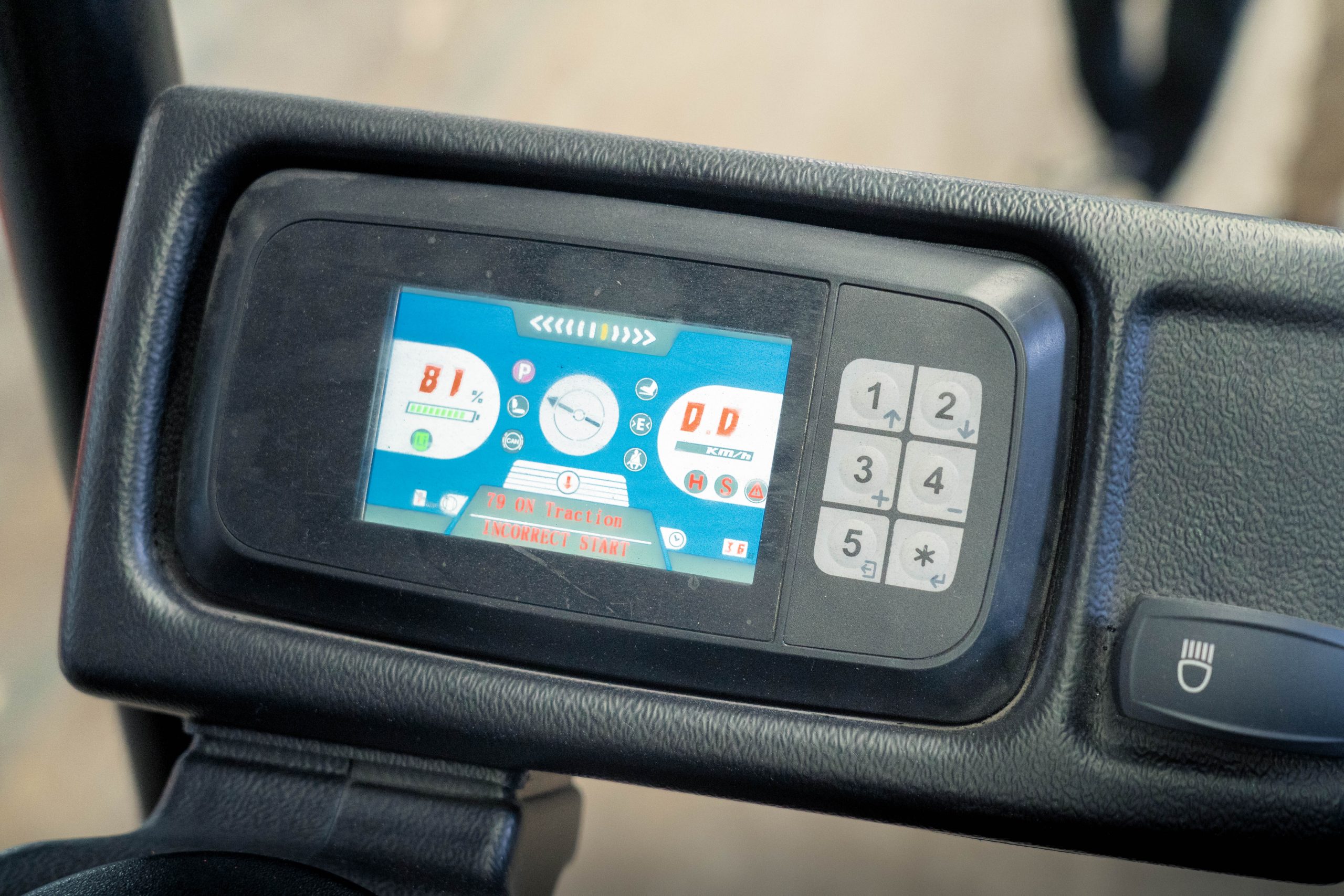

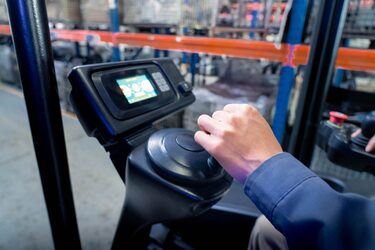

CQD16/20LB is of tremendous help to the operator with full-color display, electric steering with damping, joystick system as well as proportional hydraulic system, which the operator can take advantage of to handle loads more easily and precisely.
Enhanced mast with better visibility and safety

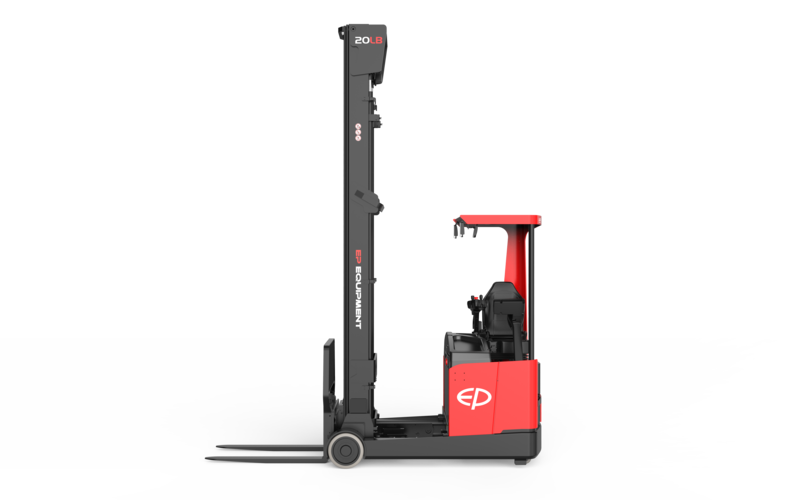

CQD16/20LB’s mast enables an unimpeded view of raised loads since the cylinders are moved to the side, and the enhanced mast is also vibration-free. This makes it ideal for safe operation at heights up to 9.5m, with nominal capacity performance up to 6.9m for the CQD16LB and 6.5m for the CQD20LB.
Easy maintenance
The seat can be easily turned sideways, providing a quick access to internal components for daily maintenance and repair.
Spacious operation space
CQD16/20LB offers spacious legroom and a suspension seat to fulfill the ergonomic needs and ensure effective operation.
Low center of gravity for stability
CQD16/20LB has a robust chassis with low center of gravity and provides driving stability and reduces the risk of accidents.
Resources
Our product portfolio
CAPACITY
2000KG
BATTERY
48V280/405/560Ah LI-ION
MAX. LIFTING HEIGHT
9500MM
LIFTING SPEED, LADEN/UNLADEN
0.45/0.55/M/S
LOWERING SPEED, LADEN/UNLADEN
0.5/0.45/M/S
REACH DISTANCE
610MM
HEIGHT INDICATOR
YES
PROPORTIONAL LIFTING SYSTEM
YES
CAPACITY
2000KG
BATTERY
48V/405AH LI-ION
MAX. LIFTING HEIGHT
12000MM
LIFTING SPEED, LADEN/UNLADEN
0.38/0.55/M/S
LOWERING SPEED, LADEN/UNLADEN
0.41/0.38/M/S
REACH DISTANCE
585MM
HEIGHT INDICATOR
YES
PROPORTIONAL LIFTING SYSTEM
YES
