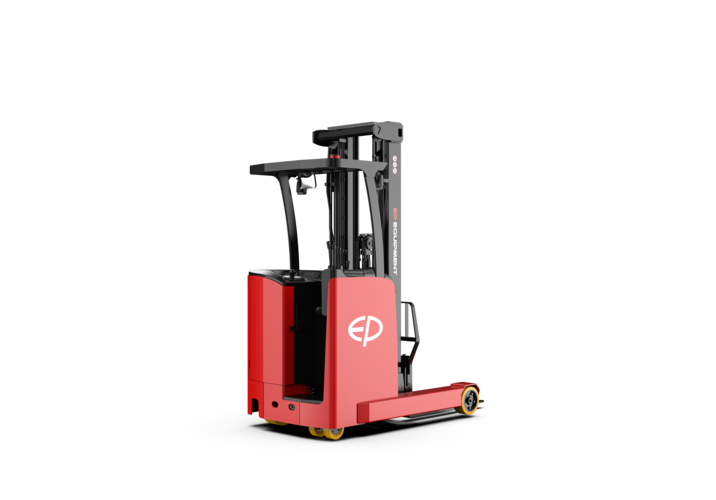

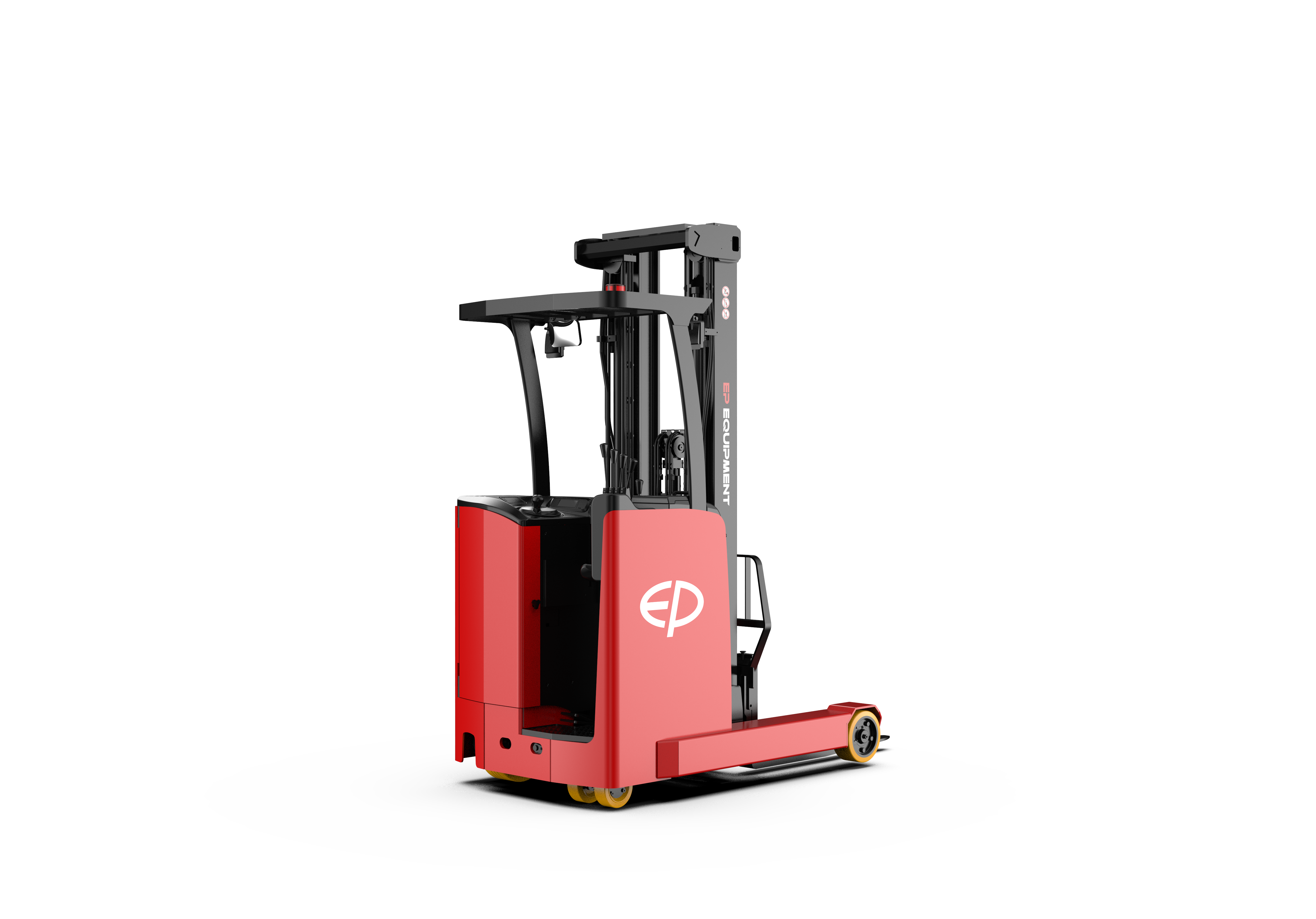

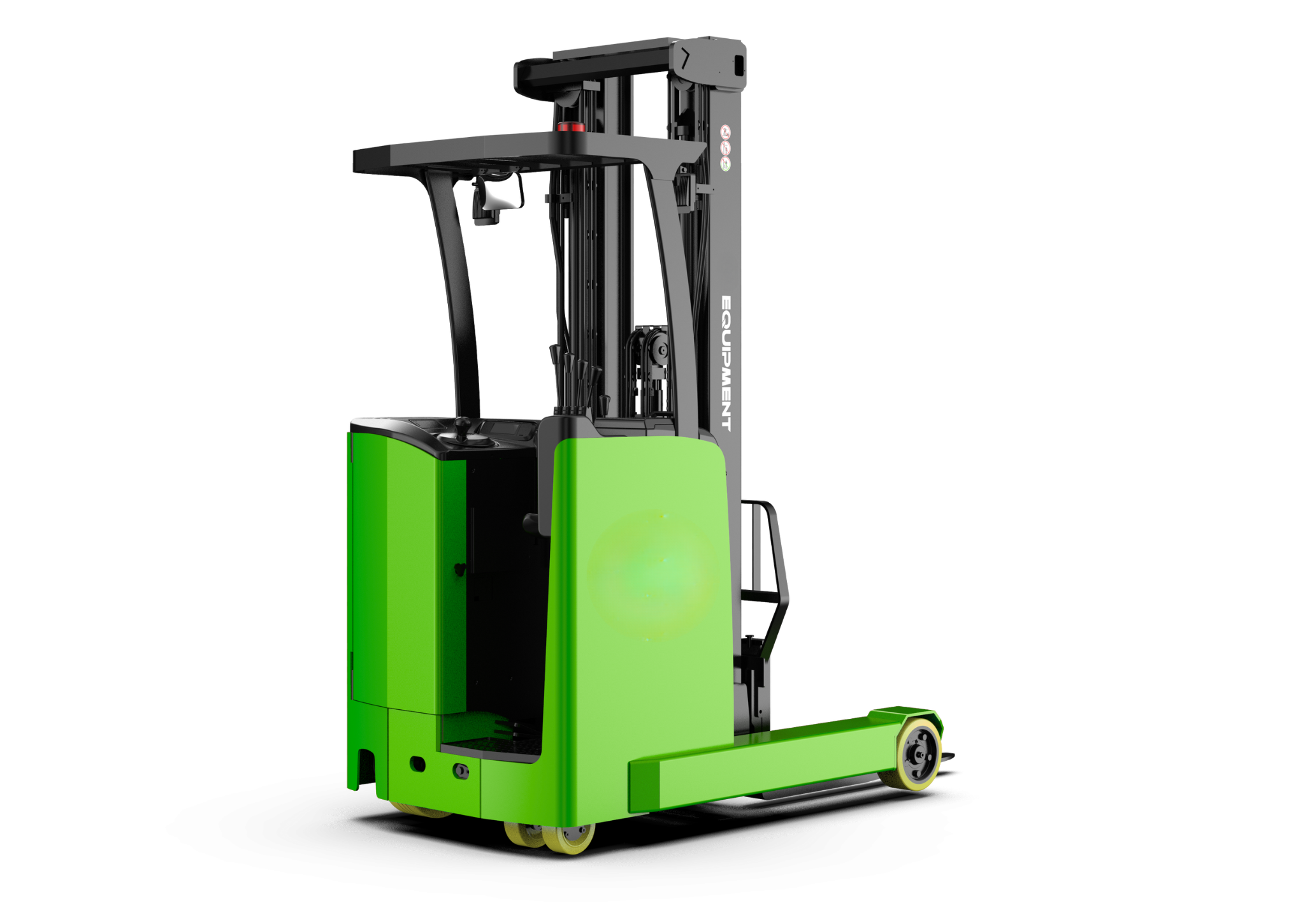

ELECTRIC STAND-UP REACH TRUCK 1.8T
STAND-ON REACH TRUCK
The CQD18S2 is an economical stand-on reach truck designed for fast-paced operations, as an agile all-rounder to suit various industries. Combining high performance and versatility, the CQD18S2 outperforms the CQD15S with enhanced visibility, faster lifting and lowering speeds, and improved climbing ability. Its optimized features make it a cost-effective and reliable choice for businesses seeking efficiency and productivity.

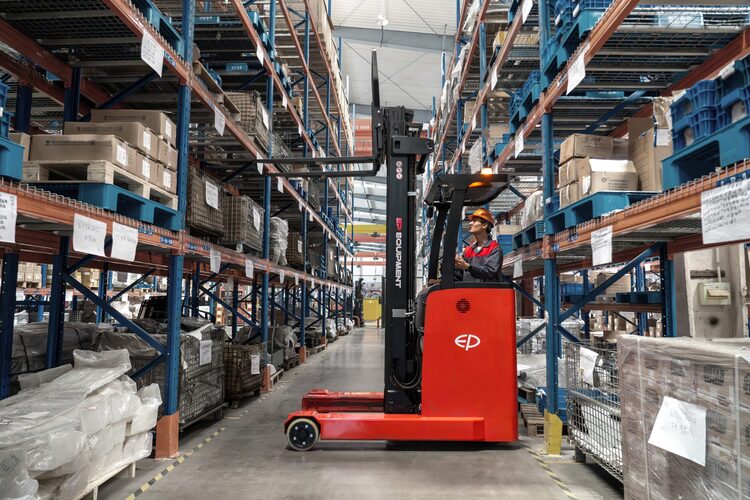

The CQD18S2 stand-on reach truck is ideal for quick retrieving and stacking in e-commerce, retail logistics, and production lines. It also offers the cold storage option to cover applications in low-temperature conditions like the fresh food and biochemical industries. Its high performance and user-centered functions make it an excellent choice for efficient high-turnover inventory management.
- High efficiency:The CQD18S2 delivers efficient performance, boosting operational productivity thanks to the fully AC-powered motor system.
- Multi-functional configurations: It is equipped with dual-speed lifting mode, turn speed control, electric power steering as well as an integrated floating suspension system for easy and safe
- Fatigue-free operation: With optimized components, the CQD18S2 offers silent and effortless stacking and retrieving performance.
- Ergonomic design: The CQD18S2 offers a spacious, comfortable cabin with easy access, a soft backrest, and assist grips for stability and control.
- Easy maintenance:The battery can be pulled out through mast-assisted extraction for quick maintenance or replacement.
Features
From retail logistics to cold storage, the CQD18S2 transforms routine tasks into effortless ones with many features.
Advanced Full-AC Motor System
The CQD18S2 is equipped with a fully AC-powered motor system, comprising a 4.3 kW drive motor and a 9.0 kW lift motor. The system is designed to deliver high output with improved energy efficiency, more accurate control and reduced maintenance requirements.
It brings:
- Smart power response system simplifies the control.
- High-torque output supports stronger loading performance.
- Energy-efficient AC motor design reduces consumption and boosts uptime.
- Multiple drive settings adapting to different tasks and environments.
- Regenerative braking helps save energy and extend battery
Compared to the previous generation CQD15S
– The upgraded lift motor power reduces operating force by 40%, providing smoother and more stable control.
– With lifting and lowering speeds of up to 0.5m/s, the CQD18S2 offers a 25% productivity improvement over the CQD15S.
– It easily handles demanding ramps with a maximum gradeability of 15%, improved by 15% thanks to the reliable 3-stage transmission.
Besides, the CQD18S2 offers the dual-speed lifting mode for flexible stacking requirements.
Floating Suspension System for Precision Control
The CQD18S2 is equipped with an integrated floating suspension system, which can precisely calibrate lock points. It maintains stability across a wide range of conditions—from routine daily operations to demanding scenarios such as sharp turns, steep ramps, or lifting heavy loads to high positions. This optimization enhances safety and more accurate control with every maneuver.

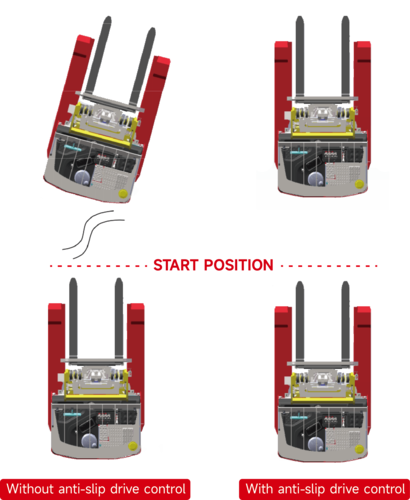

Smart Anti-Slip Traction Drive Control System
Equipped with a smart anti-slip drive control system, the CQD18S2 continuously detects surface adhesion and automatically adjusts traction force output. It ensures solid grip during sudden acceleration, sharp turning, or operation on wet ramps without throttle adjustment manually. The truck is effectively protected from wheel spin, slip, or potential tip-over even during high-load operations.
OPS and Dual-Circuit Safety Pedal for Enhanced Protection
To enforce safe start-up, the CQD18S2 is equipped with OPS: the dual-pedal operation logic requires operator pressing both brake and presence switch pedals before truck activation .
The dual-circuit safety pedal controls both travel and hydraulic functions and features anti-slip surface for operator foot stability.
Tri-Mode Energy Management with Energy Regeneration
The CQD18S2 offers 3 adaptive modes — E (Energy-saving), S (Standard), and P (Power) to better allocate power dynamically. It allows operators to adapt truck performance to different workload intensities and reduce energy consumption.
In addition, the integrated regenerative braking system captures kinetic energy during deceleration or braking phases and converts it into stored energy, further extending battery runtime.
Silent & Smooth Operation
The CQD18S2 incorporates a low-noise screw pump which provides the operator silent stacking and retrieving experience. Mast cushioning function in lifting and reach movements ensures gentle operation, especially when loading fragile and heavy goods.
User-Centered Cabin Design
The cabin is designed for fatigue-free operation with a lowered platform for operator easy access in and out. Also with semi-surrounding protection, soft backrest, and dual assist grips to ensure stability even during acceleration.
35% Enhanced Visibility
The angled overhead guard and crossbeam, along with neatly aligned hoses and chains, improve visibility by 35% compared to the CQD15S—boosting both safety and productivity.
Easy mast-assisted extraction for quick battery maintenance or replacement.
Cold Storage Option
Resources
Our product portfolio
CAPACITY
1800 KG
MAX. LIFTING SPEED
0.5M/S
MAX. LOWERING SPEED
0.5M/S
MAX. GRADEABILITY
15%
REACH DISTANCE
695MM
SUSPENSION SYSTEM
STANDARD
TURN SPEED CONTROL
STANDARD

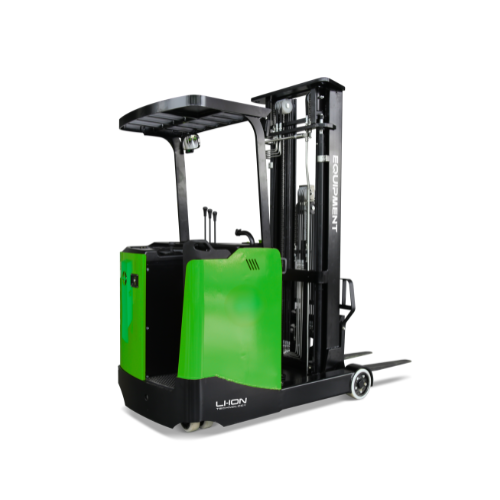

CAPACITY
1500 KG
MAX. LIFTING SPEED
0.44M/S
MAX. LOWERING SPEED
0.52M/S
MAX. GRADEABILITY
10%
REACH DISTANCE
665MM
SUSPENSION SYSTEM
NO
TURN SPEED CONTROL
NO
