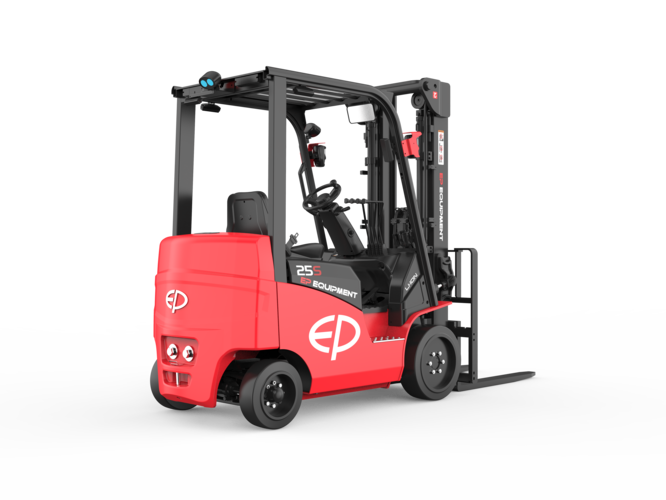

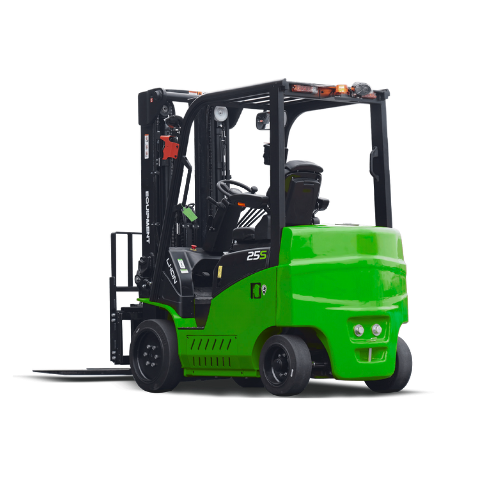

ELECTRIC CUSHION TYRE FORKLIFT 2.5T
COUNTERBALANCE FORKLIFT
EFLA251S is an electric cushion tyre forklift with a load capacity of 2500kg. With its small wheelbase of 1485mm and compact size, EFLA251S is tailored to the needs of modern indoor warehouses and industrial environments where space is limited, and clean and quiet environment is valued.
EFLA251S is a combination of maneuverability, performance, ergonomics, enhanced safety features to deliver flexible and extraordinary performance, and ease of maintenance.

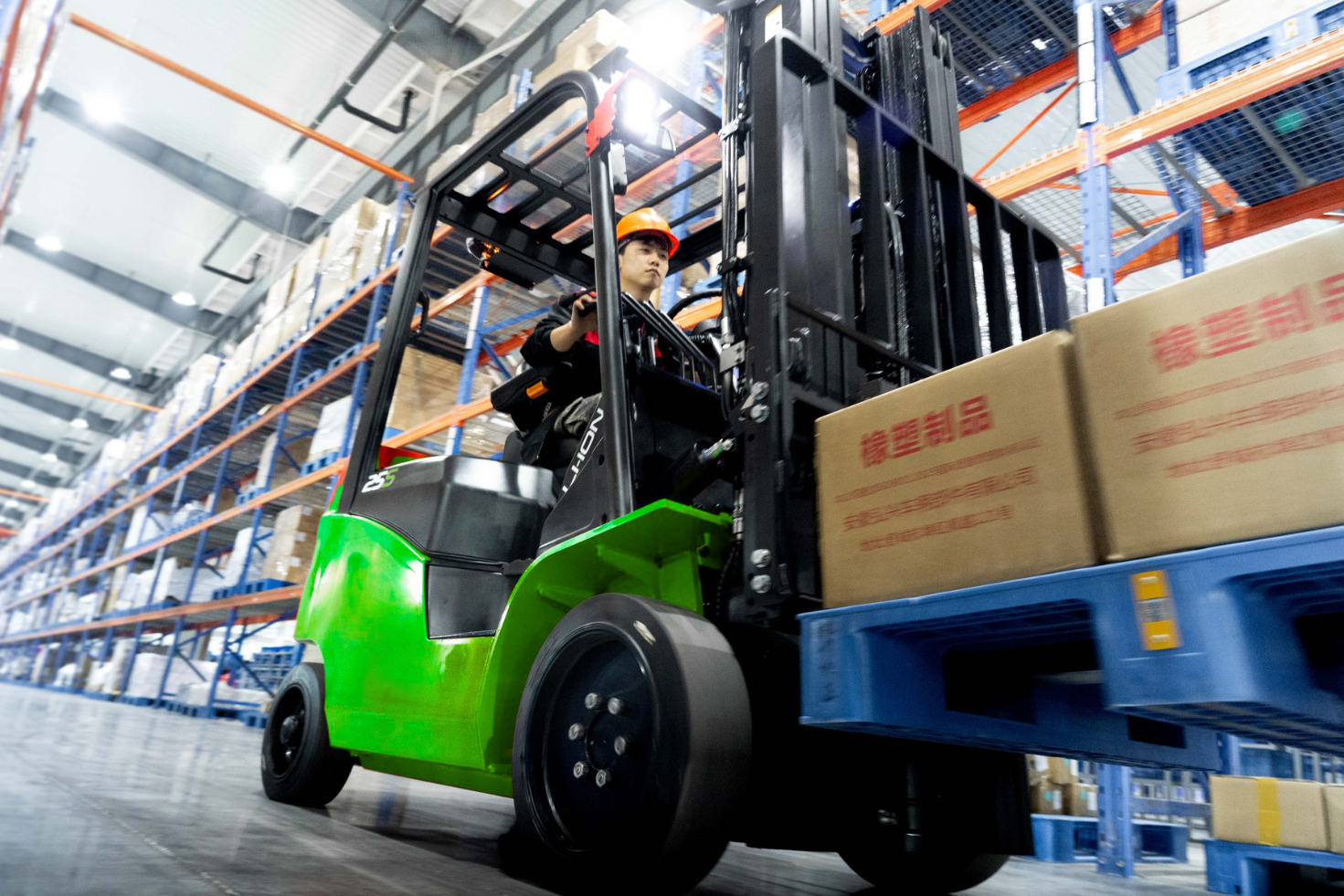

- Tight Spaces & Narrow Aisles:With a small width and turning radius, this compact electric forklift is ideal for navigating narrow aisles and confined spaces.
- Warehoueses & Retail Environment: With a compact size and a fast lifting / lowering speed, this forklift truck ideal for stocking shelvesand moving inventory within the store.
- Occasional Outdoor Usage: The tempered glass roof allows operation outdoors even on rainy days.
- Compact Size:Compact width of 1092mm, wheelbase of 1485mm, and turning radius of 1990mm ensure easy navigation in narrow aisles and confined spaces.
- Enhanced Performance:Optional four-stage mast with larger hydraulic hoses offers a high residual capacity of 1000kg at 6.55m and improved lifting/lowering speeds.
- Ergonomic Design:Suspension seat, optimized overhead guard visibility, and excellent heat regulation contribute to operator comfort and noise reduction.
- Quiet Operation:The cushion tyres ensure a quiet working environment for smooth surface applications.
Features

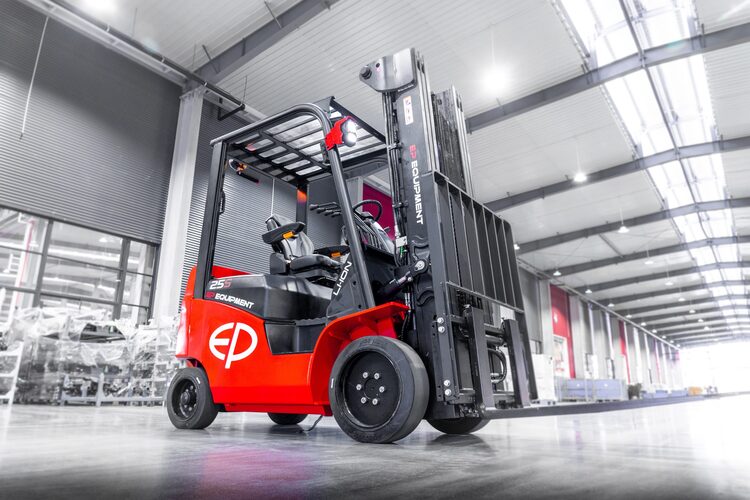

Narrow Physique. Indoor Excellence.

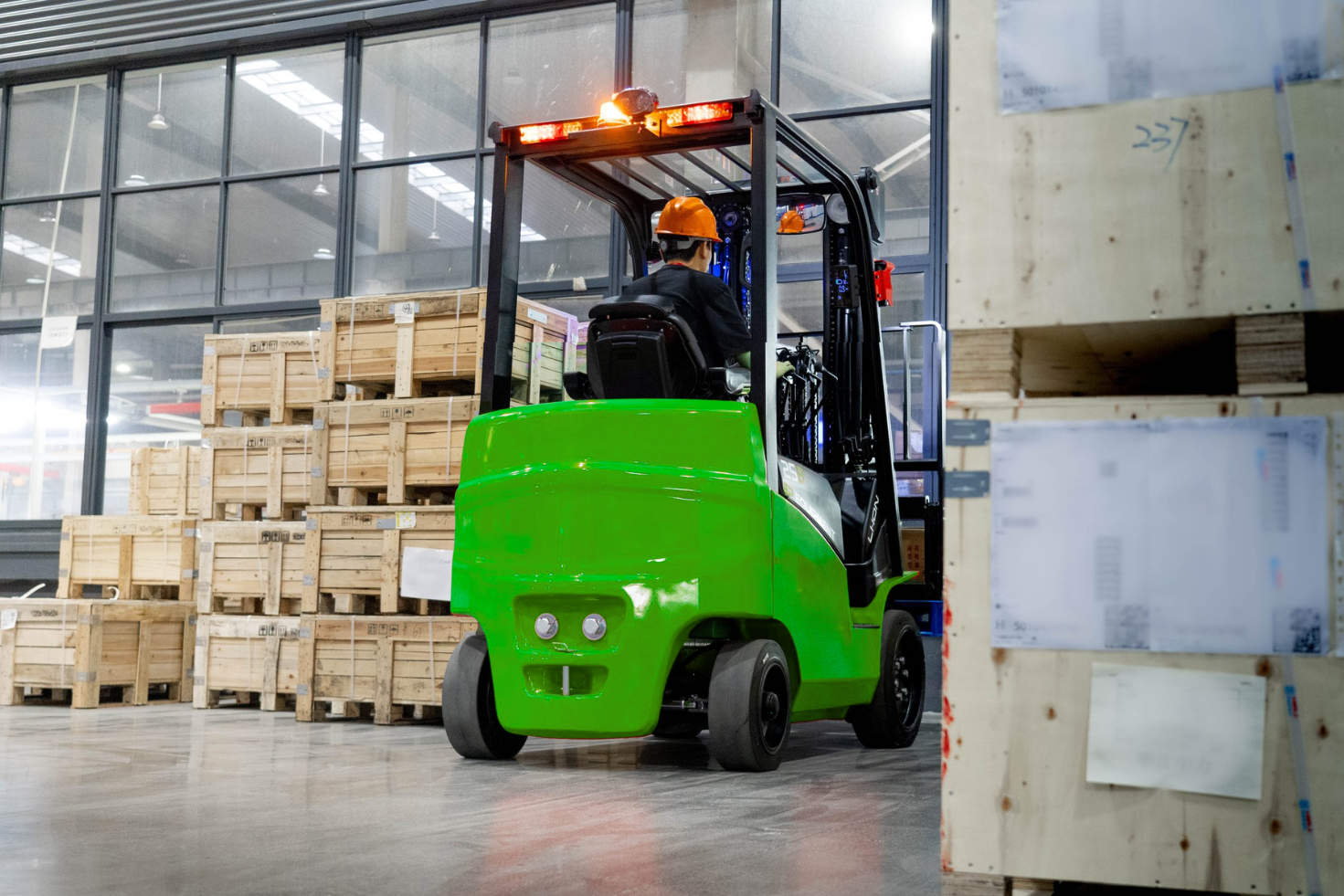

Compact design and cushion tyres for indoor operations
With a compact wheelbase of 1485mm and an overall width of 1092mm, the EFLA251S model achieves an impressive turning radius of 1990mm, which is 15% smaller than the general purpose EFL253 for indoor and outdoor use. EFLA251S’s dimension allows it to be operated effortlessly in narrow aisles. The cushion tyres are best on smooth concrete surfaces and also help with handling in tight spaces.
Li-ion Technology: High energy in a compact size and zero emission
EFLA251S is equipped with 80V/460Ah Li-ion battery as an option, which offers numerous benefits over traditional lead-acid trucks. Li-ion batteries have a high energy density, allowing them to store a significant amount of energy in a relatively small and lightweight body. This makes them ideal for applications where space and weight constraints are crucial.
More importantly, the zero-emission feature of Li-ion battery makes EFLA251S the golden choice for indoor use as Li-ion trucks emits no toxic gas or chemicals.
Lift Higher and Faster
The lifting and lowering speeds have been improved thanks to a larger hydraulic oil hose and optimized valve design, enhancing overall operational efficiency.
EFLA251S offers an optional four-stage mast with three cylinders that can reach up to 6550 mm. The forklift maintains a residual capacity of 1000 kg at heights of 6550 mm.
Ergonomics and superior visibility

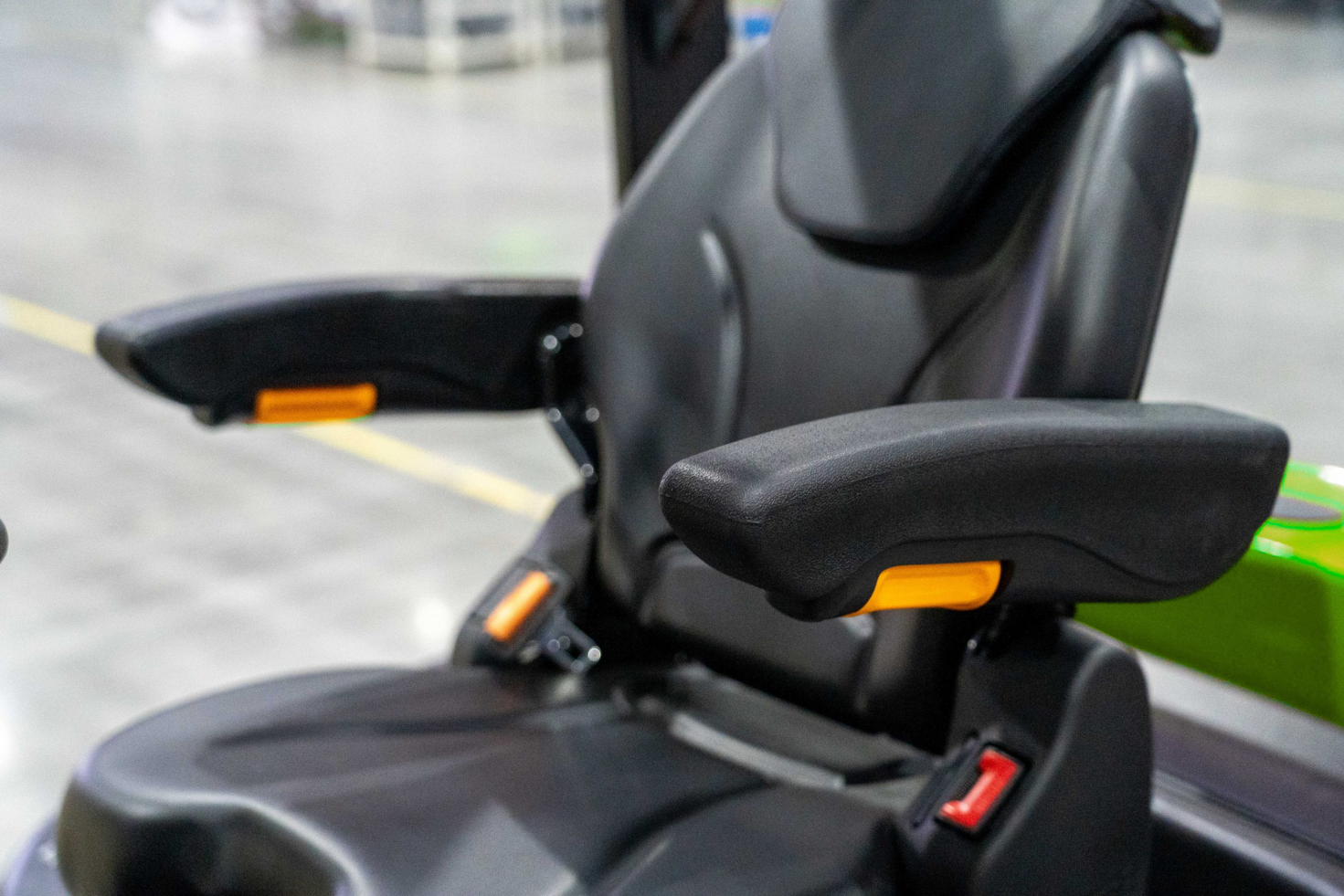

Despite its compact size, EFLA251S does not compromise on operator comfort. The driving compartment is designed with ample space for ergonomic efficiency, featuring a standard suspension seat that allows for fatigue-free operation. EFLA251S have optimized visibility through improved cylinder layout, providing the operator with a clear view of their surroundings.
The excellent heat regulation and the standard cushion tyres also contribute to noise reduction, creating a quieter working environment that enhances operator focus and comfort.
