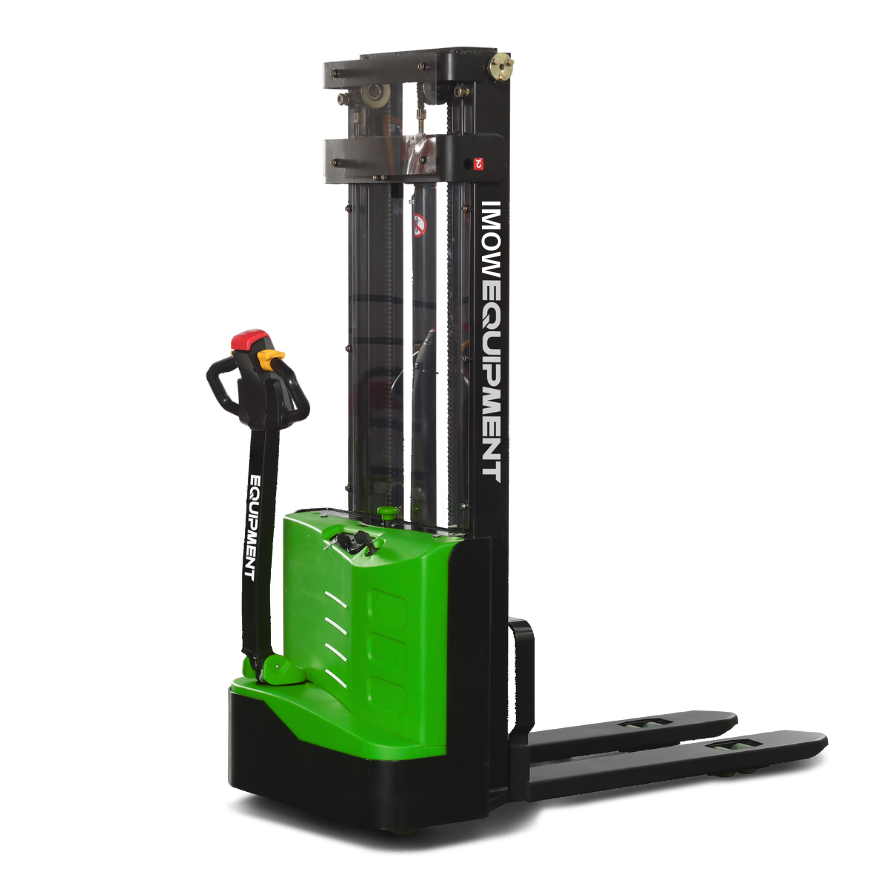

ELECTRIC PEDESTRIAN STACKER 1.2T
THREE OPTIONS: DUPLEX, MONO-MAST, STRADDLE

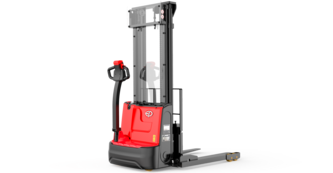

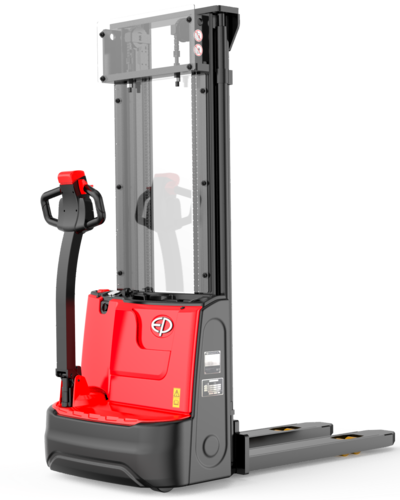

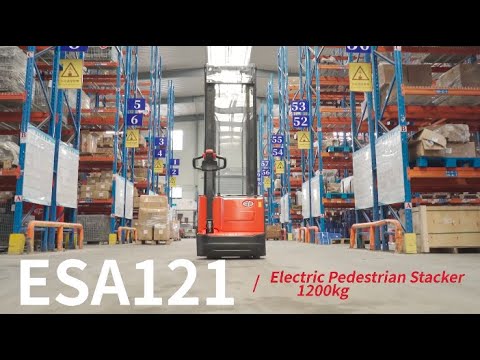

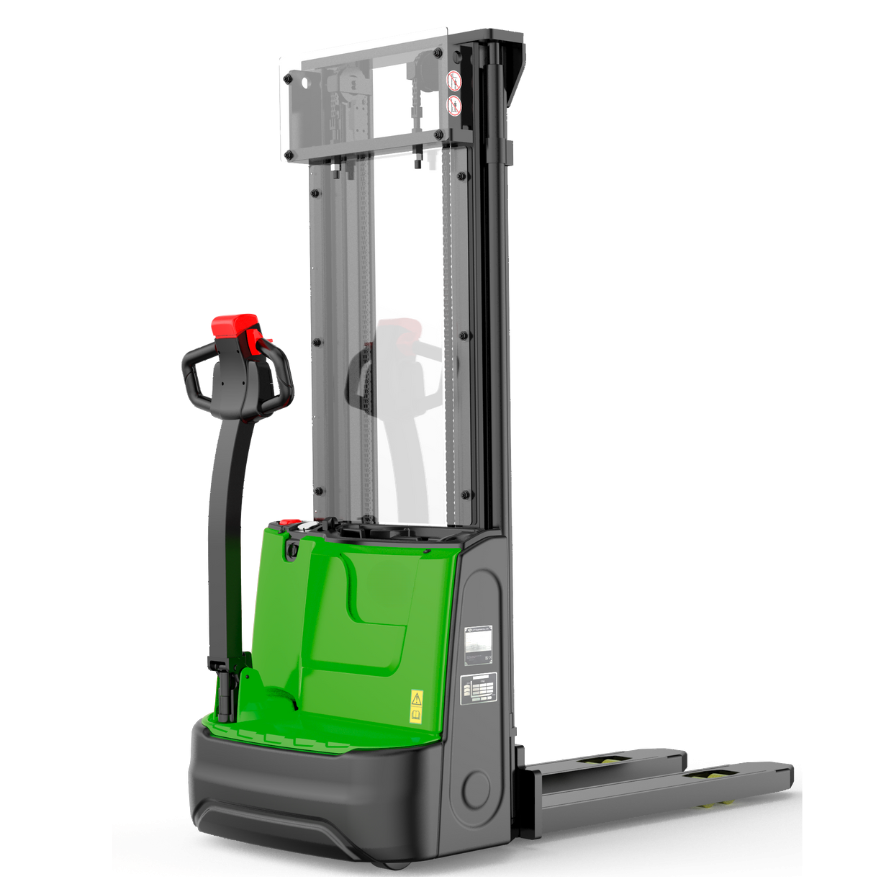

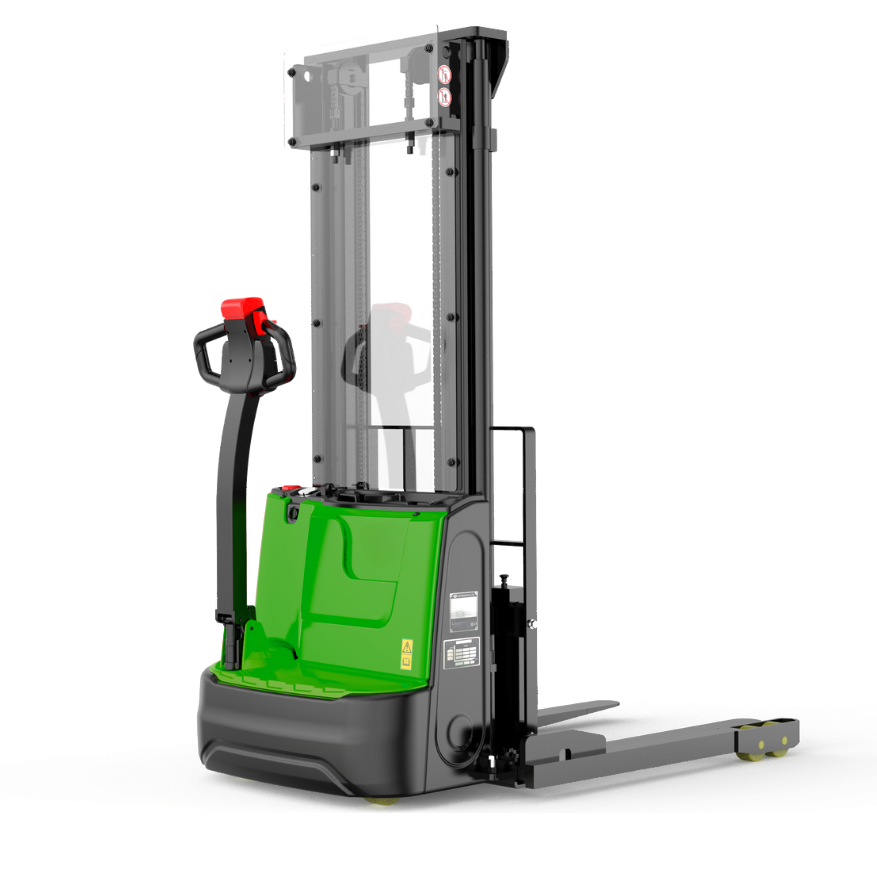

The ESA121 is an advanced electric pedestrian stacker designed to efficiently handle stacking operations up to a height of 4.1 meters. With a load capacity of 1.2 tons, it is versatile and adaptable, offering configurations such as a mono mast, regular duplex mast, and straddle legs to suit various application needs.
This model represents a significant improvement over the classic ES12-12ES, featuring a robust design with enhanced performance characteristics in safety, speed, and operational visibility.

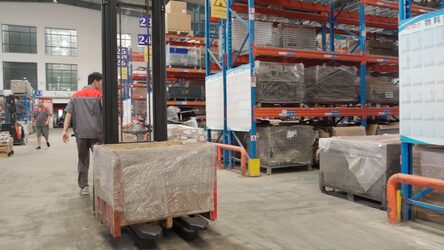

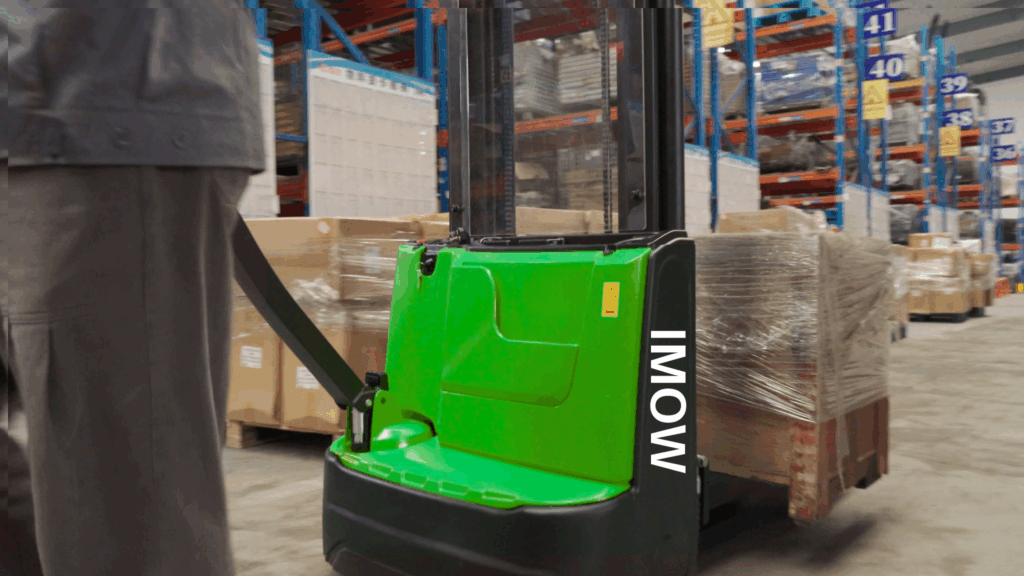

- Light Duty Tasks: ESA121 is the perfect pallet stacker in containers, warehouses, distribution centers, and retail environments. Optimized speeds for reduced handling cycle times and improved efficiency.
- Multi-functional Storage: As a pedestrian stacker, it also offers operators convenience with additional storage for carrying items and documents, plus integrated charging for electronic devices during operation.
- Battery Choices and Integrated Charging: This electric pallet stacker is available with both AGM and lithium battery options, accompanied by a standard integrated charger for efficient charging.
- Soft Landing Forks: Standard feature for quiet operation and safe handling of fragile loads.
- Safety Features: Optional automatic speed reduction when lifting to maximum heights to ensure operational safety.

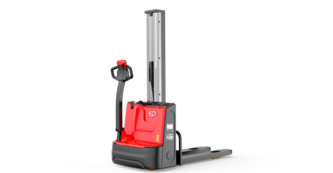

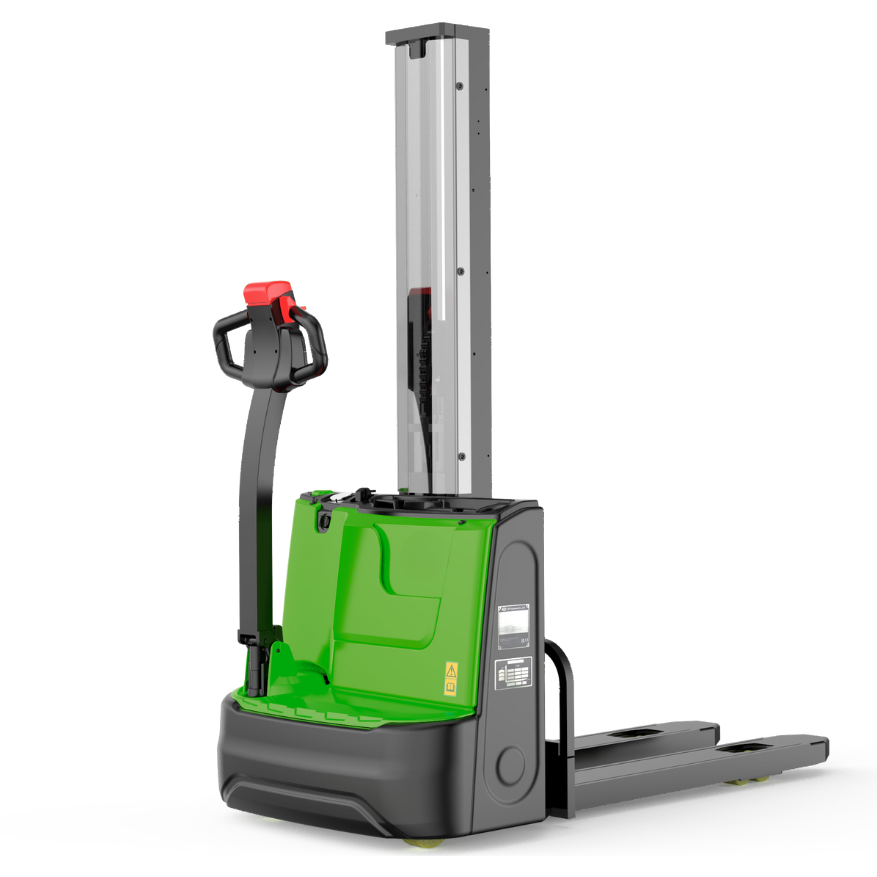

The ESA121 can be fitted with a mono mast and lift goods up to 1953mm. It’s ideal for stacking pallets in indoor spaces with low ceilings and containers thanks to its free lift height.
The ESA121 can be fitted with a mono mast and lift goods up to 1953mm. It’s ideal for stacking pallets in indoor spaces with low ceilings and containers thanks to its free lift height.
Features
Compared to the ES12-12ES, the lifting power of the ESA121 is improved from 2.2kW to 3.0kW, which naturally improves the lifting and lowering speeds and increase turnover efficiency. Soft landing fork is one of the standard feature, providing low noise and perfect handling of fragile loads and the automatic speed reduction when lifting up to top is available as an option for safety assurance.

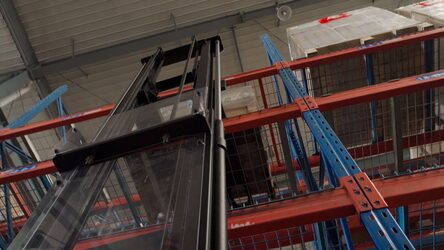

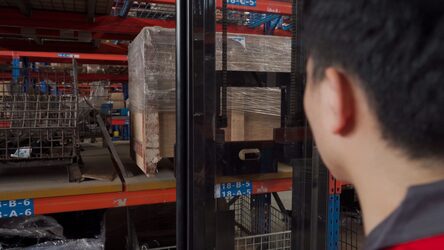

Improved mast offering stable operation and good visibility
Safety it a top priority. The structure of the ESA121 is common as heavy duty stackers: two side lifting cylinders grant an excellent visibility and the H-beam mast ensures a robust and rigid structure that grant less frame torsion when carrying heavier loads. These offer the best residual capacity (800kg at 3600mm elevation) and the higher elevation (4100mm) in it’s class.
Maintenance-free battery with integrated charger
The ESA121 offers options of AGM battery and lithium battery, both of which are maintenance-free, to fulfill various needs. It comes with a standard integrated charger for charging convenience.
Market-proven drive unit for great reliability
The ESA121 keeps the mature drive unit and ensures reliable quality and performance.
Resources
Our product portfolio
CAPACITY
1200 KG
LIFTING SPEED LADEN/ UNLADEN
0.15/0.24M/S
LOWERING SPEED LADEN/ UNLADEN
0.21/0.20M/S
BATTERY
24V/105AH AGM
INTEGRATED CHARGER
YES
MAX. LIFTING HEIGHT
4100mm
CAPACITY
1200 KG
LIFTING SPEED LADEN/ UNLADEN
0.12/0.22M/S
LOWERING SPEED LADEN/ UNLADEN
0.12/0.11M/S
BATTERY
24V/105AH AGM
INTEGRATED CHARGER
YES
MAX. LIFTING HEIGHT
3800mm
