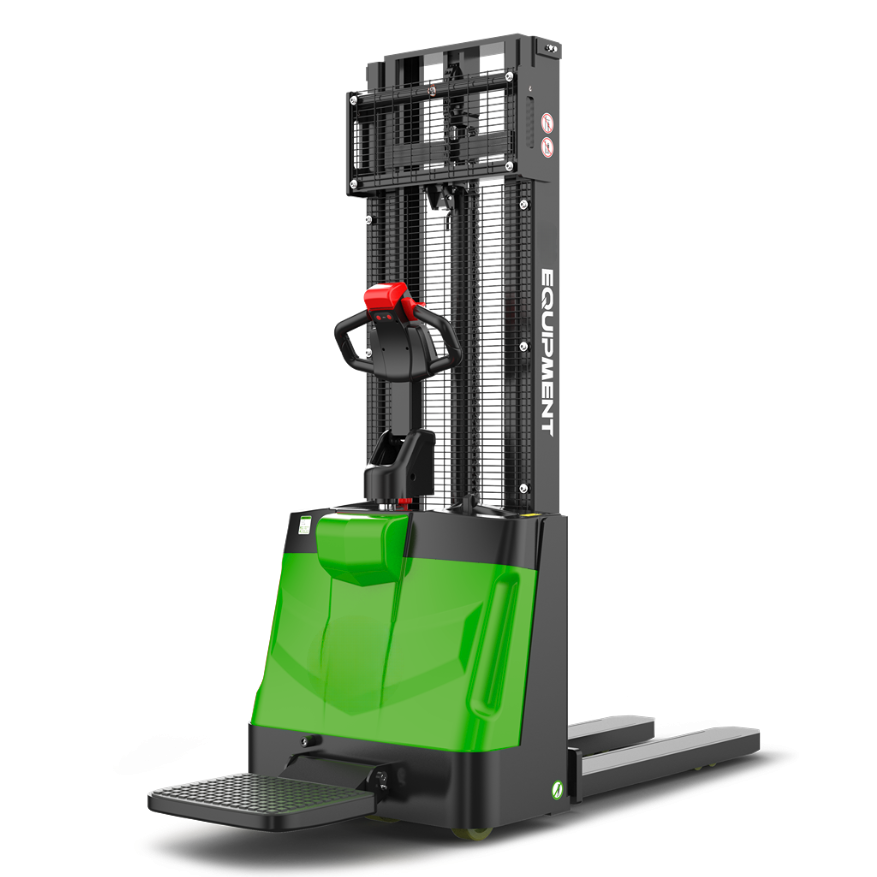

ELECTRIC PALLET STACKER 1.5T
RIDE-ON STACKER

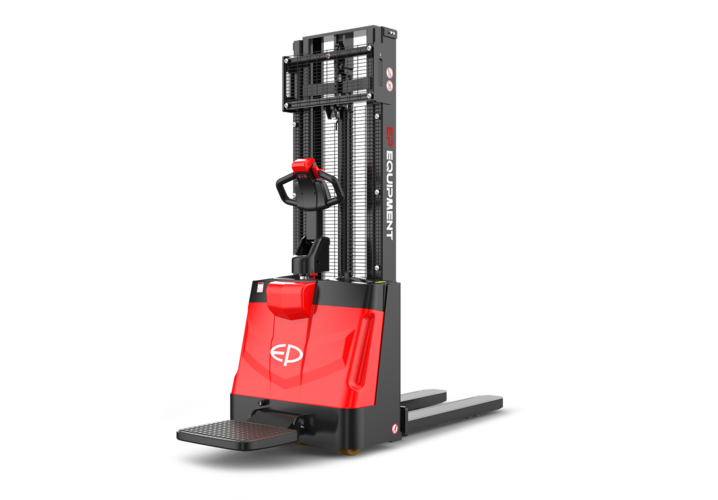

The ESR151 is a 1.5-ton electric ride-on stacker designed for economical handling of light to medium-duty tasks over short distances. It is equipped with an integrated charger and features a foldable ride-on pedal for enhanced operator comfort and convenience. This model is renowned for its tested stability and includes a low-speed mode to ensure safe operation during stacking processes.
Note: The model is unavailable in the EU market.
- Small to Medium Workspaces: Ideal for performing stacking tasks in smaller warehouses or manufacturing facilities, providing an economical solution for material handling.
- Safety and Stability: Designed to offer high stability and safety, making it a hassle-free option for daily material handling needs.
- Integrated Charging System: Comes with an integrated charger, simplifying the charging process and enhancing operational readiness.
- Foldable Ride-On Pedal: Features a foldable pedal, allowing for comfortable ride-on operation, which is particularly beneficial during longer working periods.
- Low-Speed Safety Mode: Includes a low-speed mode to ensure safe stacking operations, reducing risks for operators and enhancing overall workplace safety.
Features
Owing to its tested stability and safety design, ESR151 is a reliable option which helps reduce risk for operators .
INTEGRATED CHARGER
ESR151 is equipped with a 24V/15A integrated charger which provides charging convenience and flexibility in daily usage.
OPERATION SAFETY ASSURANCE

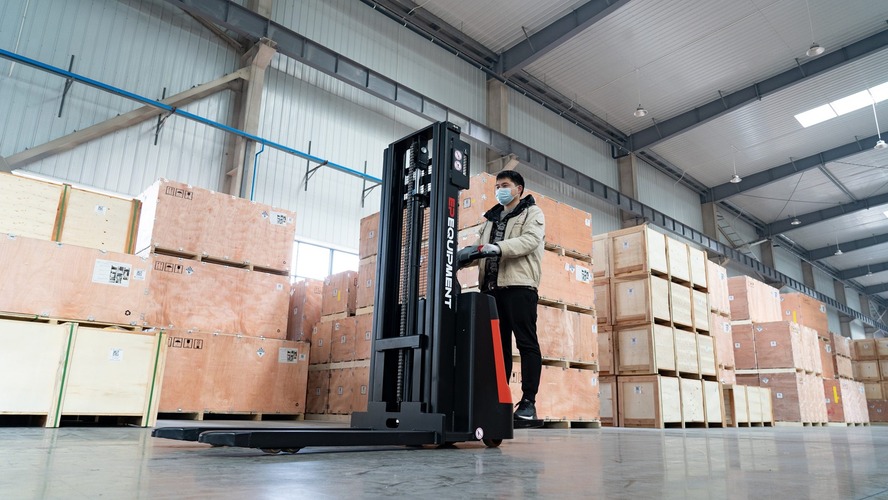

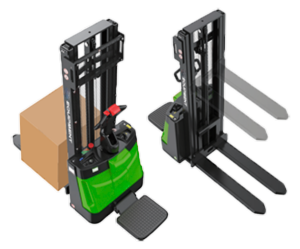

ESR151 is able to automatically switch to the low-speed mode when the height of the forks reaches to 720mm to ensures the operation safety. Also, with iron net covering the mast, the operator is protected from the goods that fall accidentally.
STABILITY TESTED
ESR151 is rigorously tested and able to pass the Industrial Vehicle Stability Verification GB/T26949.1～2012. Stability has been EP stacker’s strong suit.

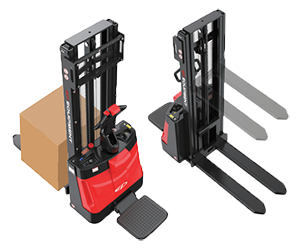

COMFORTABLE OPERATION WITH A FODLABLE RIDE-ON PEDAL

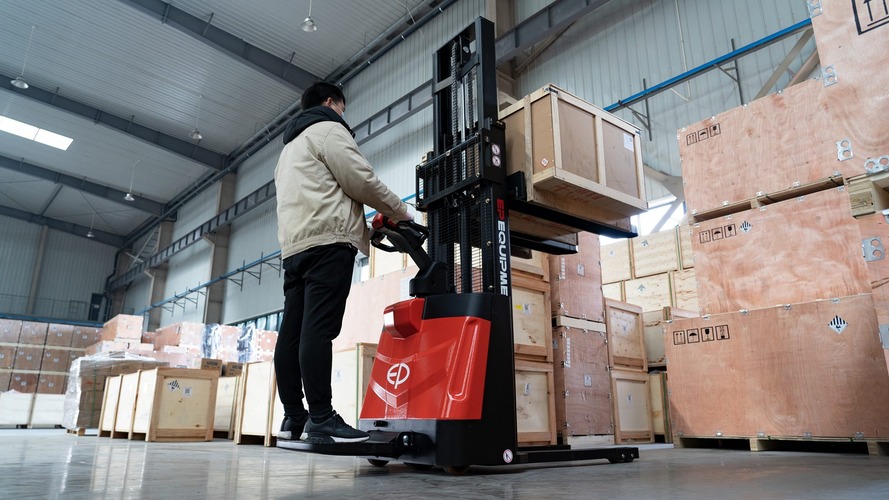

ESR151 adopts user-centric design and offers more comfort for operation via a ride-on pedal. Also with the pedal folded, it is allowed to operate the stacker in confined space in the turtle speed.
MARKET-PROVEN COMPONENTS
ESR151 uses market-proven spare parts, bringing less maintenance risk. The stacker is available with the explosion-proof hydraulic system and the mature drive motor, offering better reliability and lower energy consumption in operation.
Resources
Our product portfolio

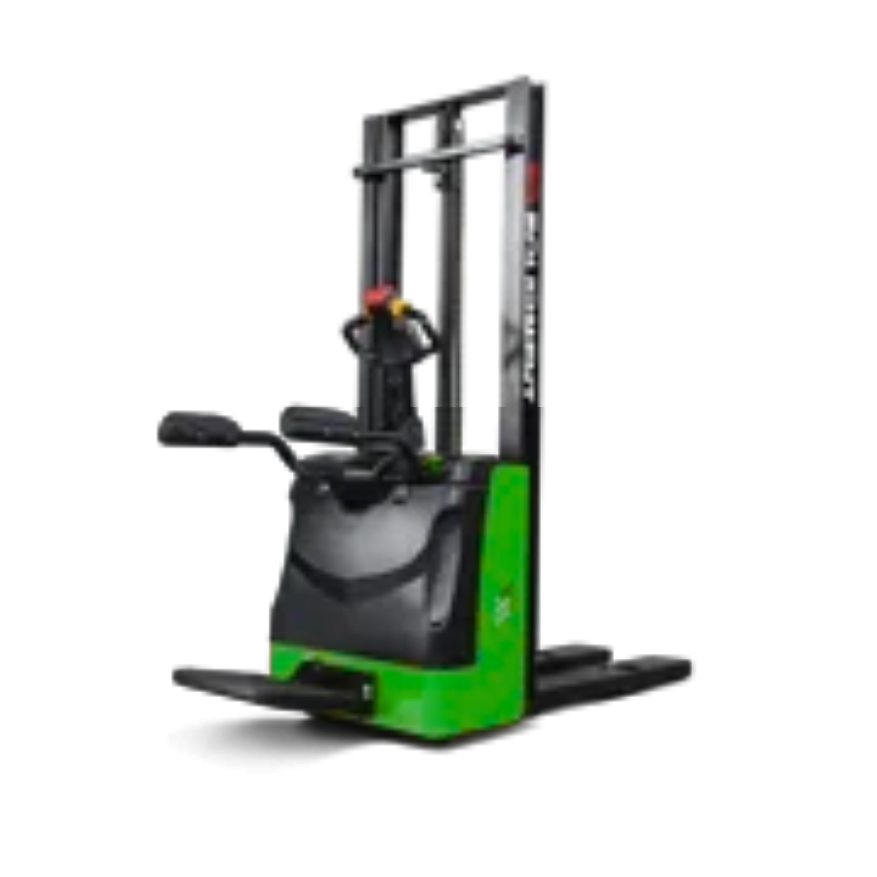

CAPACITY
1400KG
TYPE
WALKIE/RIDER
ARMREST
YES
TRAVEL SPEED (KM/H)
5.0/5.5
BATTERY CAPACITY
48V/85Ah AGM
LIFTING SPEED, LADEN/ UNLADEN [M/S]
0.068/ 0.162
LOWERING SPEED, LADEN/ UNLADEN [M/S]
0.142/ 0.136
AUTO LOW-SPEED MODE
NO
EPS
YES
COST
ECONOMIC
CAPACITY
1500KG
TYPE
WALKIE/RIDER
ARMREST
NO
TRAVEL SPEED (KM/H)
4.0/4.5
BATTERY CAPACITY
24V/105Ah AGM
LIFTING SPEED, LADEN/ UNLADEN [M/S]
0.1/ 0.14
LOWERING SPEED, LADEN/ UNLADEN [M/S]
0.1/ 0.1
AUTO LOW-SPEED MODE
YES
EPS
NO
COST
ECONOMIC
