DOUBLE-DECK ELECTRIC PALLET STACKER 2.0T
RIDE-ON STACKER
The RSi201 is a cutting-edge lithium-ion stacker engineered for heavy-duty applications. With a robust design tailored for double-deck stacking, it ensures reliable and efficient material handling. Built to tackle demanding tasks in warehouses, manufacturing facilities, and retail environments, the RSi201 combines power, precision, and adaptability.
This versatile electric pallet stacker offers unmatched performance and user-focused features, making it ideal for both confined spaces and long-distance operations.
- High-Capacity Design: Capable of handling up to 2000kg across two pallets simultaneously.
- Advanced Engineering: Combines precision control with industry-leading lift speeds for maximum productivity.
- Durability & Reliability: Rugged construction ensures long-lasting performance under heavy loads.
- Optimized Ergonomics: Designed with the operator in mind, reducing fatigue and improving workflow efficiency.
- Double stacking:Up to 2000kg on two pallets, this electric stacker is perfect for medium to heavy duty applications, such as retail environments, manufacturing facilities, large warehouses, and distribution centers where power and productivity are essential.
- Uneven Surfaces: The 120mm initial lift ensures greater ground clearance on ramps, loading docks and uneven surfaces, maintaining stable operation across various floor conditions.
- Narrow Aisles:The pedestrian mode ensures easily maneuver through narrow aisles and tight corners with maximum control and precision.
- Long-Distance Transport:The platform operation mode ensures efficient, ergonomic travel across long distances at 8 km/h, reducing operator fatigue during extended routes.
Exceptional Performance:
- 3kW lift motor delivers rapid lift (0.18m/s) and lower (0.36m/s) speeds
- Ensures high productivity for intensive tasks
Versatile Maneuverability:
- Initial lift for seamless operation on ramps and uneven surfaces
- Folding platform adapts to tight spaces and long-distance transport
Enhanced Safety:
- Transparent mast shield for optimal visibility
- Safety arms enhance operator protection
Operator Comfort:
- Suspended platform with electric power steering provides effortless control and reduces operator fatigue
Features
RSi201 is designed with a transparent panel offering an optimal view of the fork tips, which ensures precise stacking and retrieval safety.

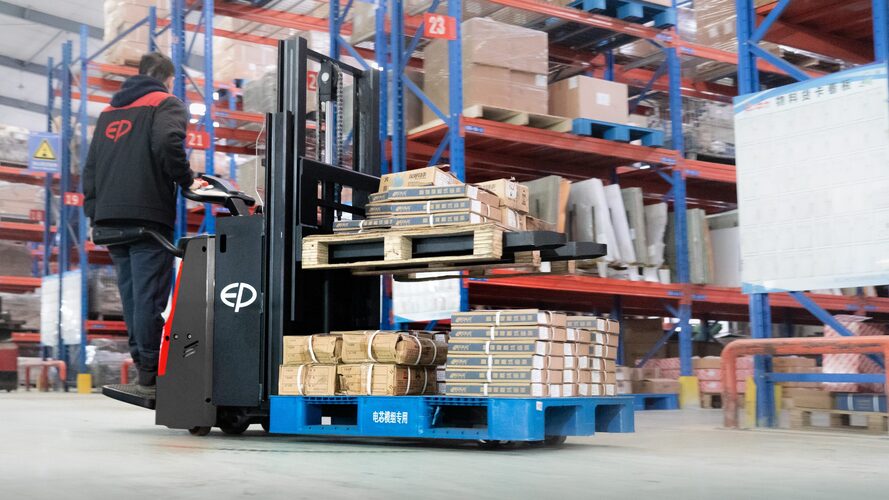

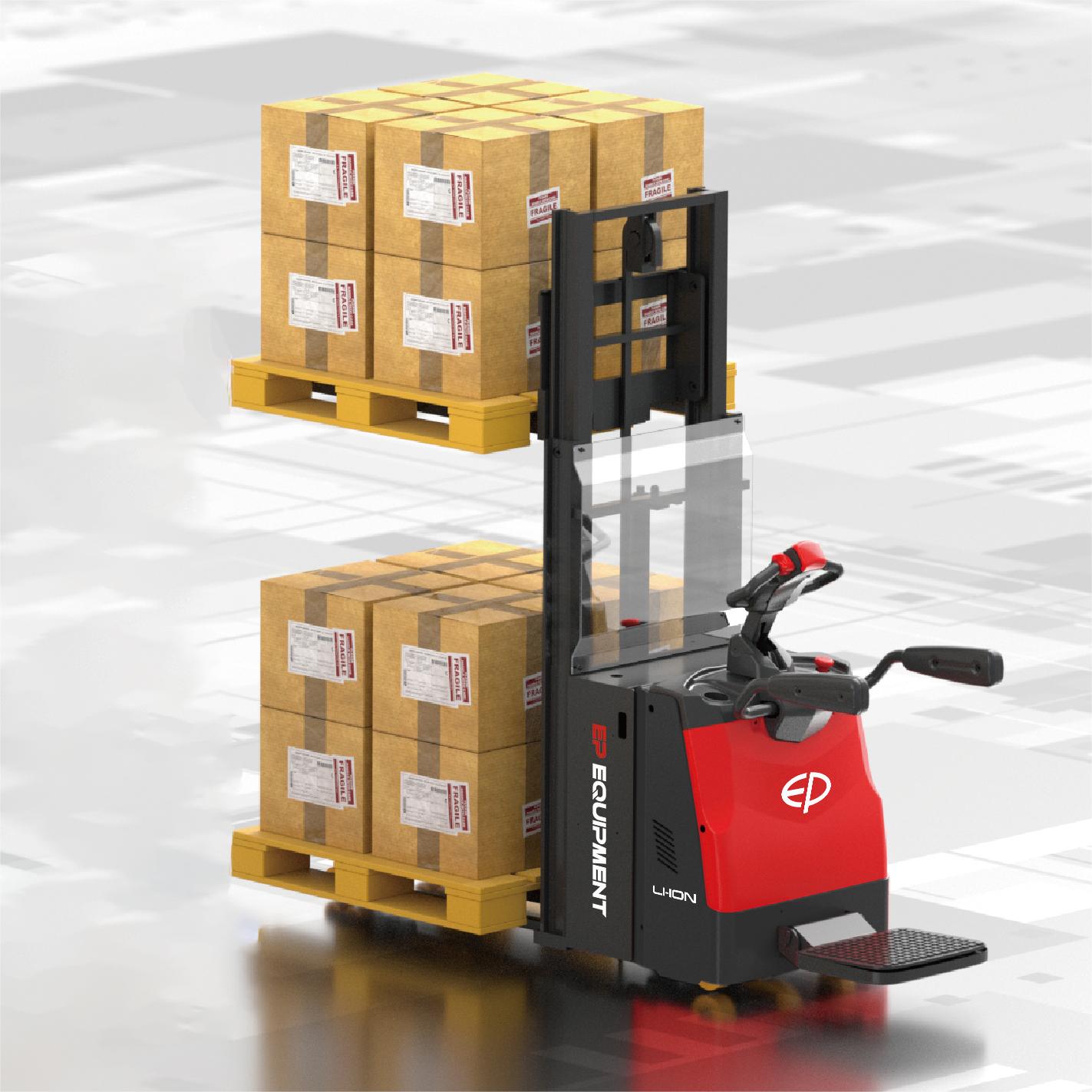

Double Stacking for Double Productivity
The RSi201’s double deck function enables simultaneous transport of two pallets, effectively doubling productivity in a single trip. This versatile stacking capability is ideal for intensive order picking and goods transport operations where maximum throughput is essential.
Powerful and Precise Lifting Performance
Equipped with a robust 3kW lift motor, the RSi201 achieves exceptional lifting speeds of 0.18m/s and lowering speeds of 0.36m/s when laden. Combined with the proportional lift system, it delivers not only rapid but also smooth and precise load handling, enhancing operational efficiency and throughput in demanding applications.
Maneuverability in Any Environment
With initial lift, the RSi201 ensures smooth operation over uneven surfaces and ramps, making the truck adaptable to diverse working environments. Plus, RSi201’s compact overall design offers exceptional maneuverability in narrow spaces. Operator can switch to pedestrian mode for a more precise control in tight spaces, or rides on the folding platform for efficient long-distance travel at 8 km/h. The electric power steering and the automatic speed reduction on turns grant precision and safety.

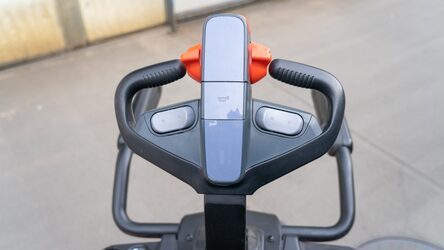

Superior Operator Comfort
The suspended platform combines firm grip with optimal operator comfort during extended routes. With electric power steering, operators maintain effortless control even when handling heavy loads, reducing fatigue during long shifts.
Advanced Lithium-ion Power
Equipped with a high-capacity 24V/205Ah Li-ion battery and integrated 24V/30A charger, the RSi201 ensures maximum operational uptime through flexible opportunity charging. For enhanced productivity, an optional 24V/100A external charger enables rapid two-hour charging cycles.
What’s more to say?
The RSi201 inherits both the sleek design and market-proven components from the iconic RPL series. The market-proven components ensures reliable performance backed by years of real-world success.This combination of established reliability with innovative features ensures dependable performance in demanding material handling operations.

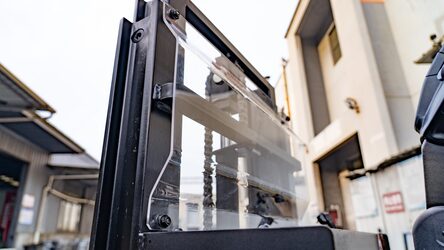

Enhanced Safety and Visibility
The transparent mast shield and wide mast design provide exceptional visibility while ensuring operator protection. Combined with the safety arms, operators enjoy both clear view and protection during operation.
