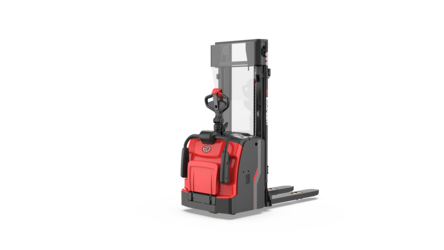

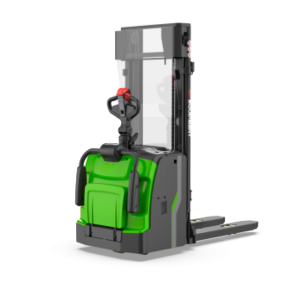

HEAVY-DUTY LI-ION STACKER WITH FOLDABLE PLATFORM 1.6T
The RSL Series is a robust, lithium-powered stacker designed for heavy-duty applications. Featuring a foldable platform, it is available in two versions: the standard model and the one with initial lift, to meet a wide range of operational needs.

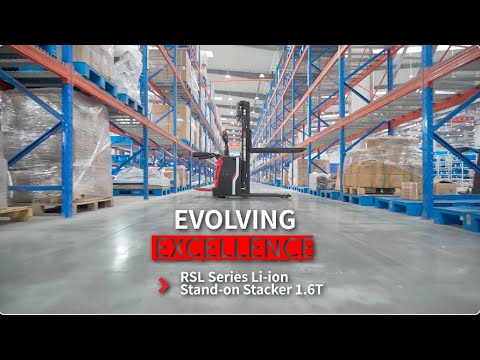

The RSL series is designed for heavy-duty and demanding applications especially in large warehouses and logistics centers where long-distance transportation is daily routine. Even if in rough environments, the RSL161i with initial lifting is able to cope with uneven surfaces and outdoor roads. Besides, the RSL161i can stack two pallets at one time for double efficiency.
- High performance: Compared to the ES16-RS, the RSL series demonstrates overall improvements on travel speed, lifting and lowering speeds, and max. gradeability for productivity boost.
- Lithium technology: Designed around the advantages of lithium-ion technology such as opportunity and rapid charging and zero maintenance.
- Effortless operation: The improved foldable platform and the proportional electronic power steering take your driving experience to the next level.
- Great maneuverability: To maneuver in confined spaces or narrow aisles, the platform can be folded which makes the stacker more compact.
- Initial lifting: The RSL161i comes with initial lifting for smooth travel on uneven surfaces and double decking possibility.
Features
As the upgraded successor to EP’s classic ES16-RS, the RSL Series delivers enhanced performance, proportional fork controls, powerful lithium battery, an improved foldable platform, and an effortless steering system for greater efficiency, safety, and operator comfort.
Maximum Performance for Professional Users

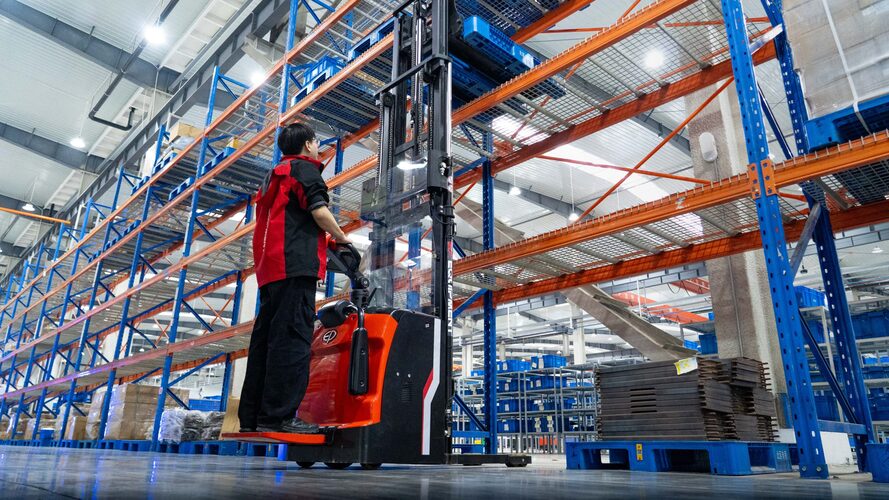

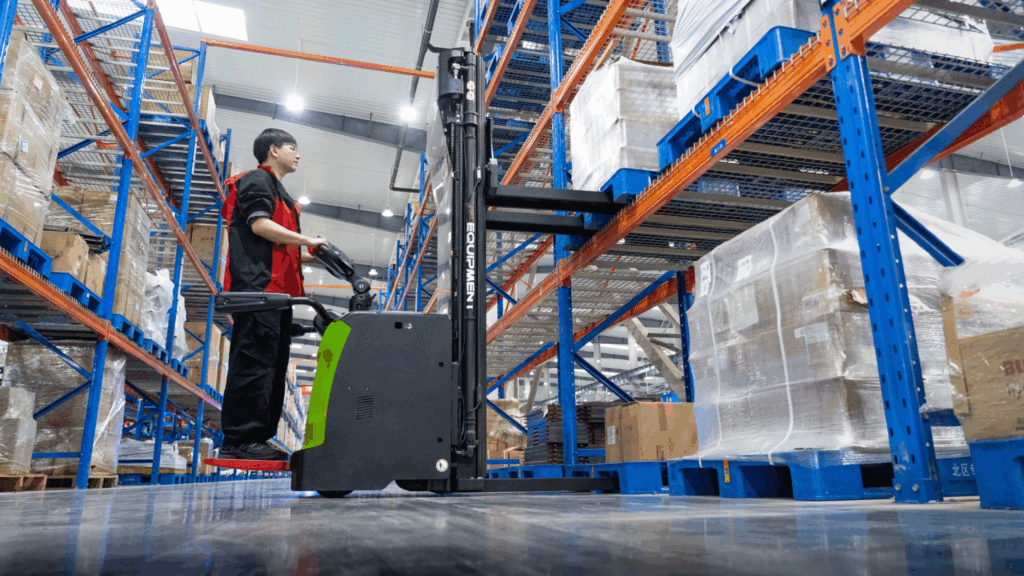

The RSL161 of standard version and Initial lifting version is the perfect choice for professional users who require a high-performance electric stacker. It’s designed for efficient material handling in large warehouses and industrial environments where operators usually stack and transport goods over medium to long distances. The RSL161i allows for smooth travel on uneven roads and double decking capability.
Designed around Lithium Battery Advantages
Equipped with a powerful 24V 205Ah Lithium-ion battery, the RSL series offers all the advantages of lithium technology which features a compact design and grants long operation, short downtime and extremely long battery life with no maintenance requirement. The external charging plug makes the charging process efficient and user-friendly – no need to open battery compartment and remove plugs any more. And the full re-charge time can be less than 2 hours.
Improved Foldable Operator Platform

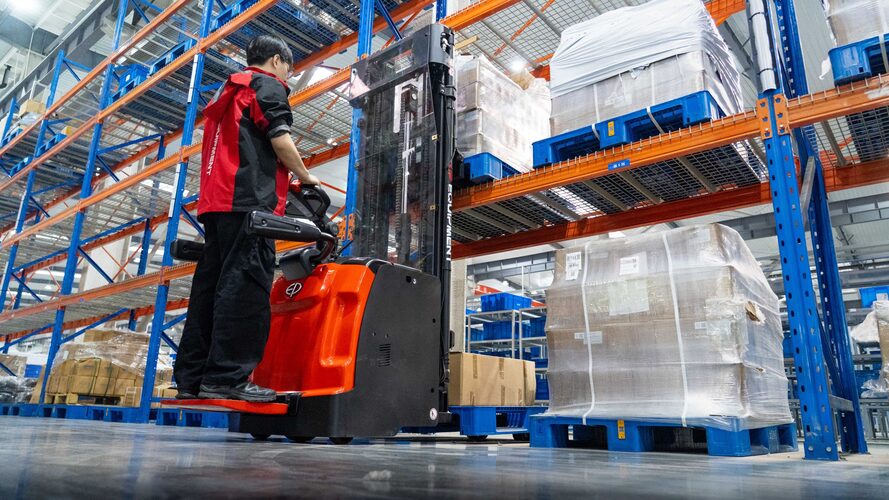

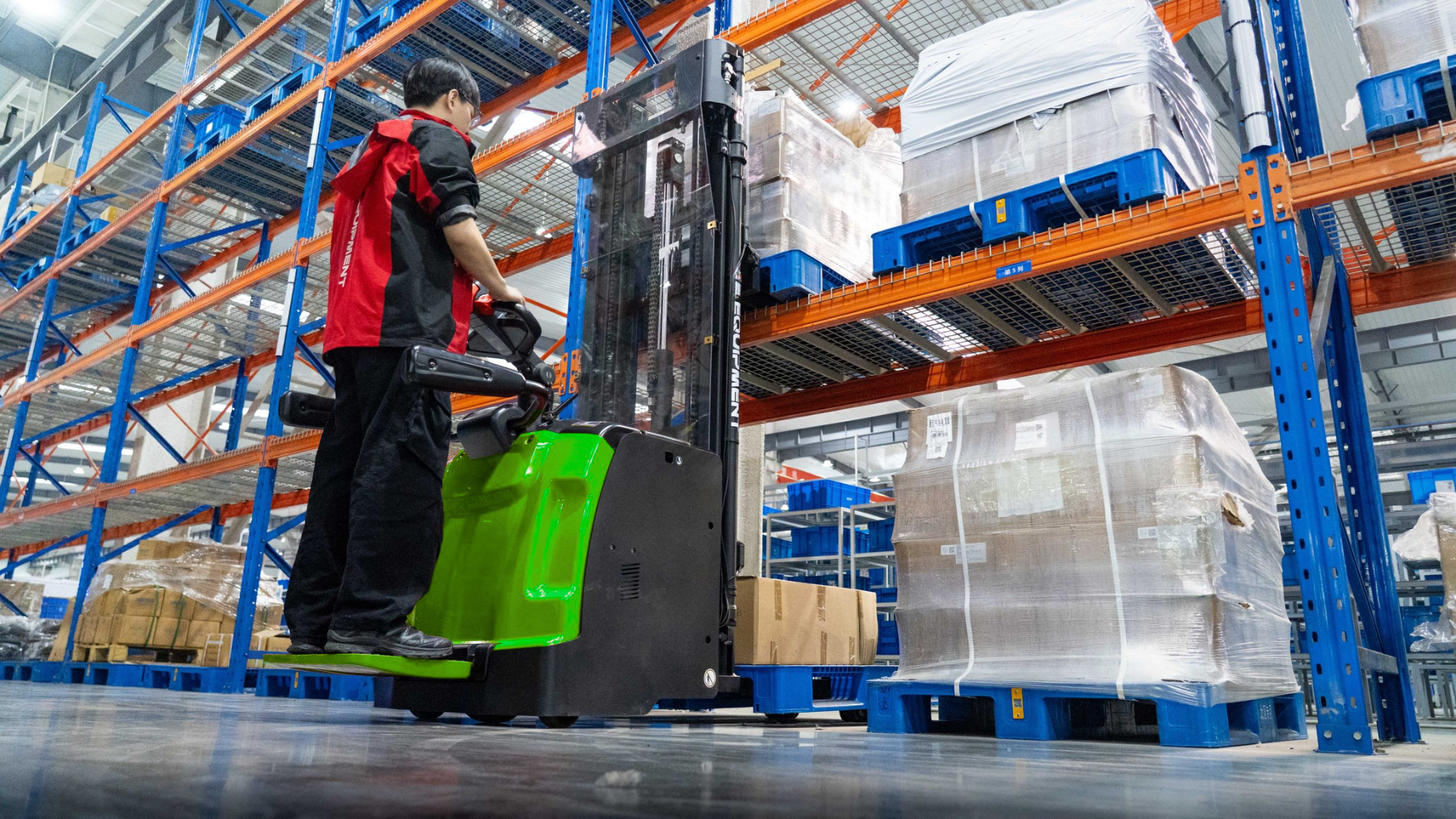

The newly designed foldable operator platform enhances both comfort and maneuverability, making the RSL series ideal for both long-distance travel in large warehouses and usage in tight spaces. Its shock-absorbing suspension ensures a smooth and stable ride, reducing operator fatigue over extended shifts. When folded, the stacker becomes more compact and easier to control, improving maneuverability between racks and narrow aisles.

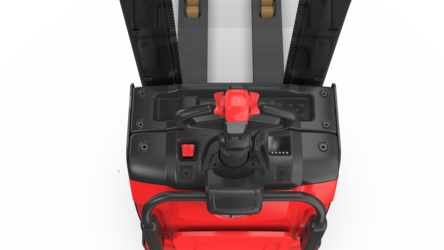

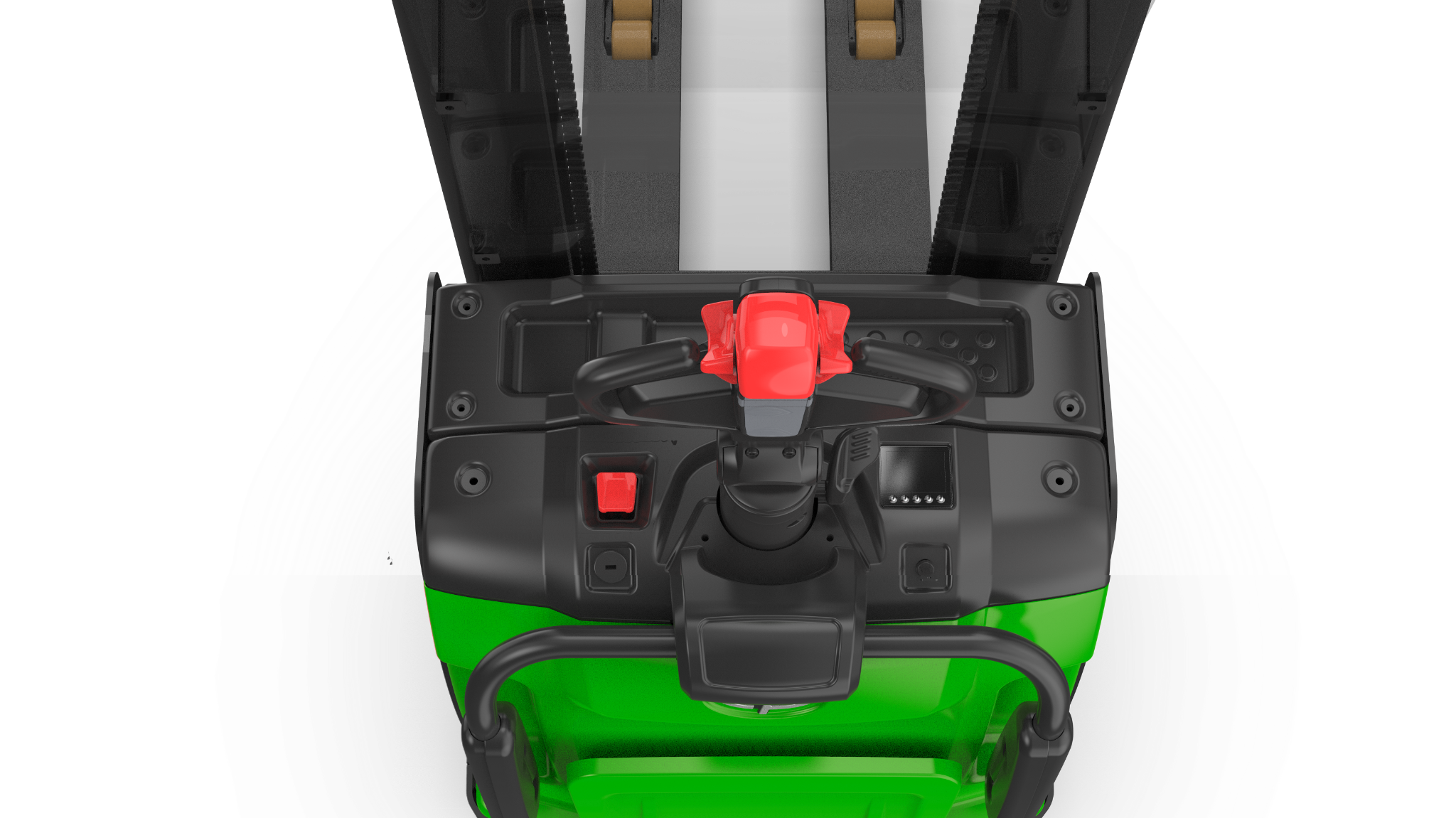

Effortless Steering and Smart Monitoring
The proportional electronic power steering effectively reduces operator fatigue while ensuring precise and smooth control. For added safety, the truck automatically slows down at turns, enhancing stability and maneuverability. The new color display provides a quick and clear overview of the truck and battery status, and the operator can monitor key information at a glance. With intelligent steering and real-time data access, the RSL161 ensures greater efficiency, comfort, and safety in warehouse operations.
Resources
Our product portfolio
CAPACITY
1600 KG
BATTERY
24V/205AH LI-ION
LIFTING SPEED LADEN/ UNLADEN
0.2/0.26M/S
LOWERING SPEED LADEN/ UNLADEN
0.4/0.36M/S
MAX. LIFTING HEIGHT
5500MM
MAX. LIFTING HEIGHT OF FULL CAPACITY
2950MM
TURNING RADIUS
1560MM
PROPORTIONAL LIFTING
STANDARD

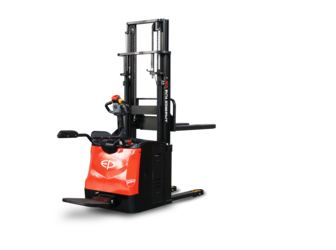

CAPACITY
1600 KG
BATTERY
24V/210AH LEAD-ACID
LIFTING SPEED LADEN/ UNLADEN
0.13/0.16M/S
LOWERING SPEED LADEN/ UNLADEN
0.30/0.22M/S
MAX. LIFTING HEIGHT
5500MM
MAX. LIFTING HEIGHT OF FULL CAPACITY
2500MM
TURNING RADIUS
1730MM
PROPORTIONAL LIFTING
OPTIONAL
