ELECTRIC FORKLIFT 3-3.8T
COUNTERBALANCE FORKLIFT TRUCK
CE: EFL302X5,352X5,382X5
Non-CE: EFX5,301,351,381
The lithium-powered X5 series is an electric counterbalance forklift with a load capacity of 3.0-3.8 tons, featuring a unique modular battery design. It offers a standard battery box (80V/280Ah) that can be used individually or in pairs, providing flexibility and endurance for various application requirements, from occasional to intensive usage.
The X5 series delivers high performance comparable to the EFL3 series S version, making it highly competitive in its category.
- Alternative to IC Trucks: Ideal for various transportation tasks, from occasional to intensive usage.

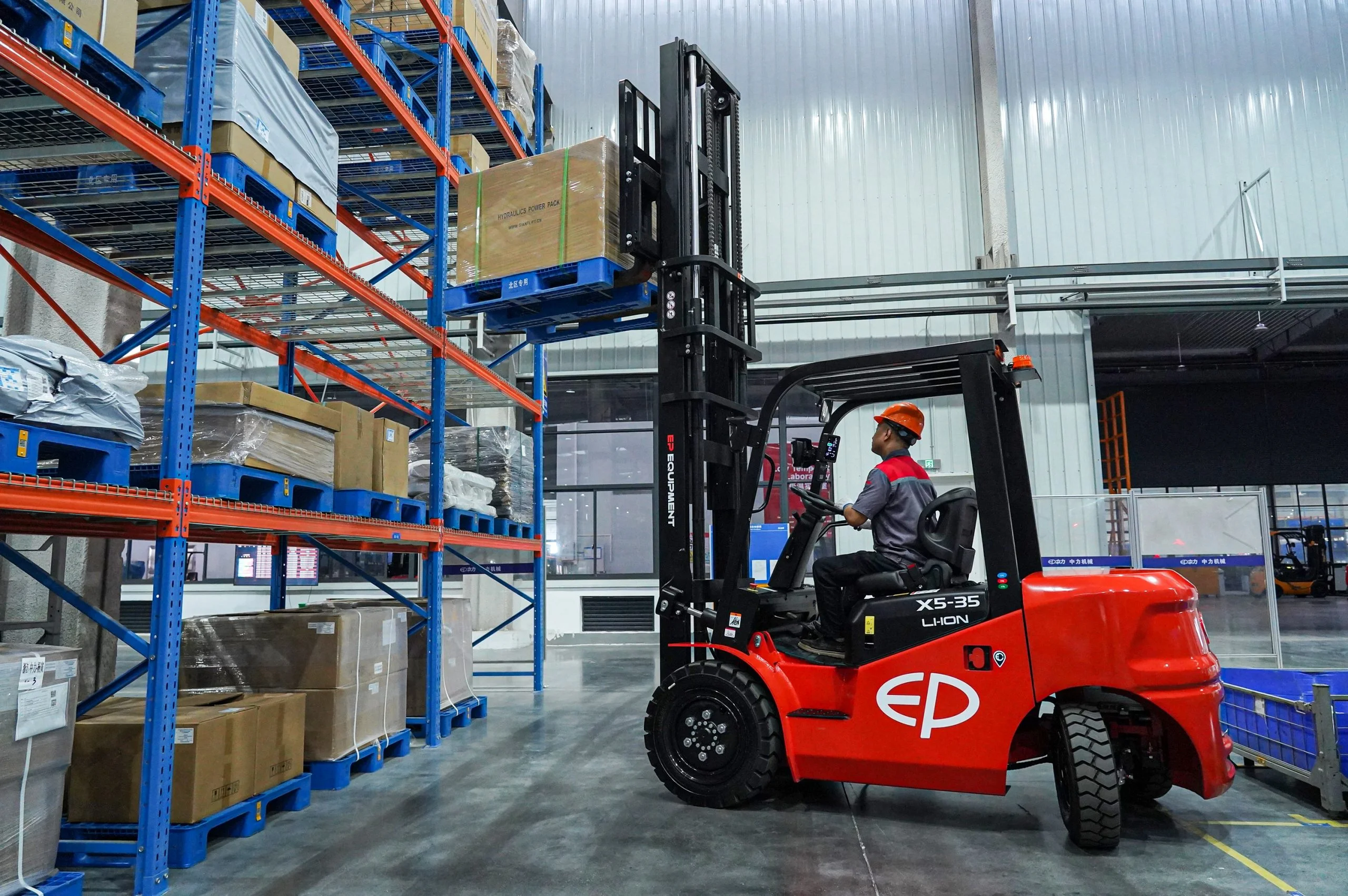

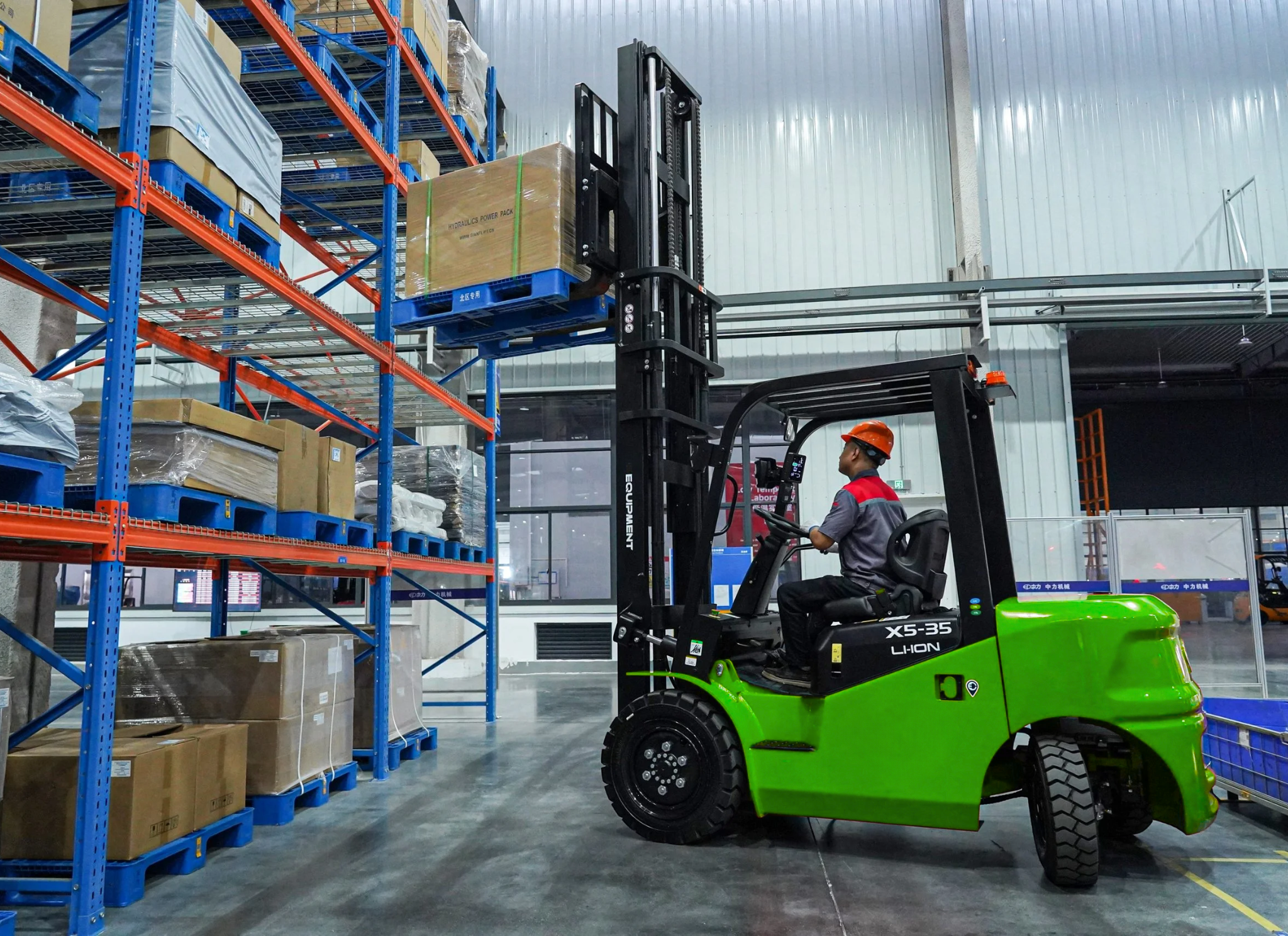

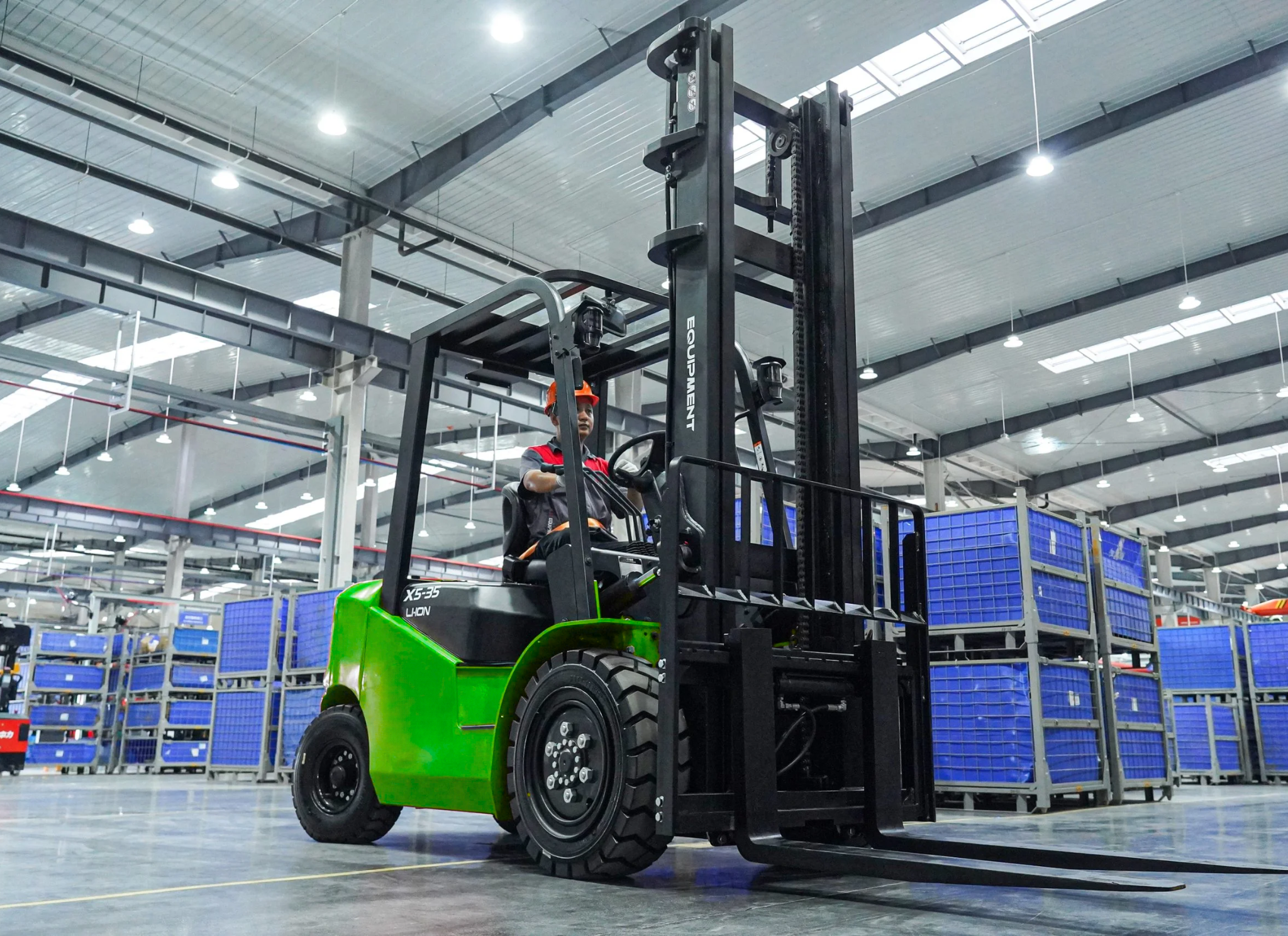

- Versatile Use Cases: Suitable for big logistics centers, warehouses, manufacturing, ports and terminals, as well as chemical and petroleum industries.
- Indoor &Outdoor: High ground clearance makes it ideal for both indoor and outdoor applications.
- Modular battery design
The EFX5 series electric forklift uses a unique modular battery design, allowing one truck to offer 2 battery capacity options for medium to highly intensive applications. This benefits dealers in terms of stock management and fixed assets control.
- High performance
The X5 series delivers great performance comparable to the EFL 3 series S version to achieve efficient goods throughput.
Features

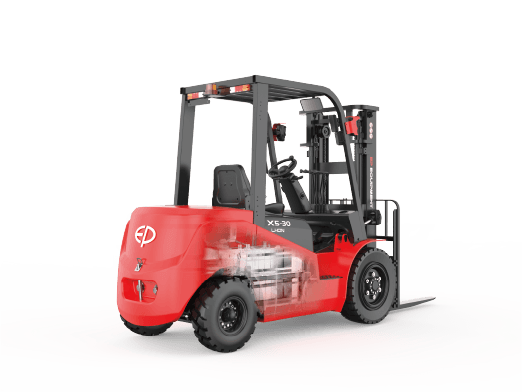

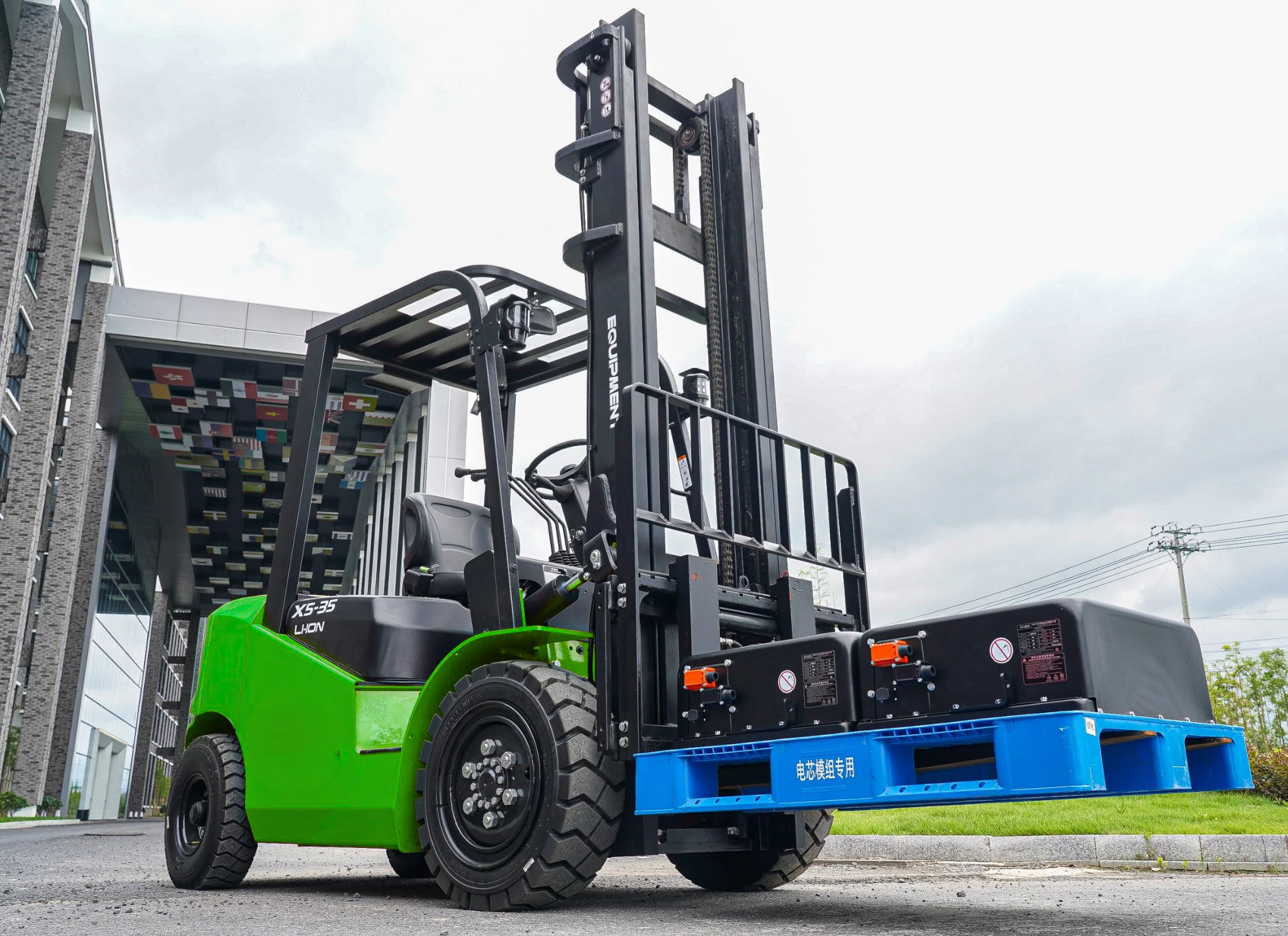

The X5 series electric forklift features a modular Li-ion battery design and offers one standard lithium battery module of 280Ah. The truck can accommodate up to two battery modules and through pairwise combination, you can get one more battery capacity 560Ah. This allows for flexibly adjusting battery capacities to meet different application requirements from light to heavy duties.

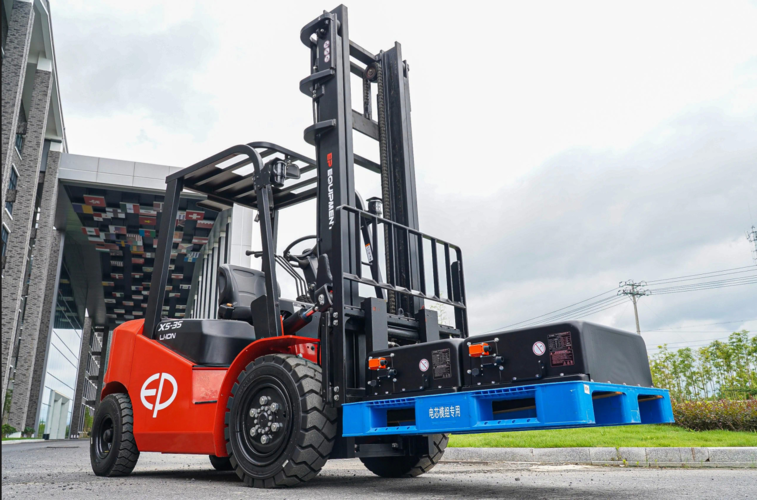

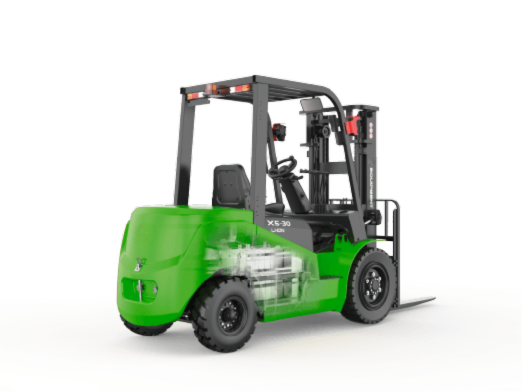

Modular Li-ion battery design for maximum flexibility
- Optimize stock management
Modular battery design enables offering medium to high battery capacities in one truck to fit various endurance demands. This helps dealers reduce fixed assets, manage stockpile effectively and respond quickly to different users needs.
- Longer endurance inpeak season
The user needs in terms of daily usage of the truck may change over the years or there may be a peak during harvesting or on a specific season. The modular battery system makes it easy to retrofit an additional battery, providing additional sales or short-term rental opportunities.
- Ensureuninterrupted operation
Double batteries mean double guarantee. When one battery is down, another one can seamlessly power the X5 truck, minimizing downtime risks associated with battery and ensuring continuous, smooth handling operation.
High performance for productivity boost
The X5 series demonstrates high performance comparable to EFL303S to enhance goods turnover efficiency.
Travel speed (laden/ unladen): 16/17km/h
Lifting speed (laden/ unladen): 0.4/0.5m/s
Lowering speed (laden/ unladen): 0.43/0.44m/s
Max. gradeability (laden/ unladen): 20/25
Lithium technology with opportunity charging
As a electric forklift truck, the X5 series features the advantages of lithium technology and meets the requirements of sustainable development. It supports opportunity charging and zero maintenance to minimize downtime.
Higher ground clearance for all terrain challenges

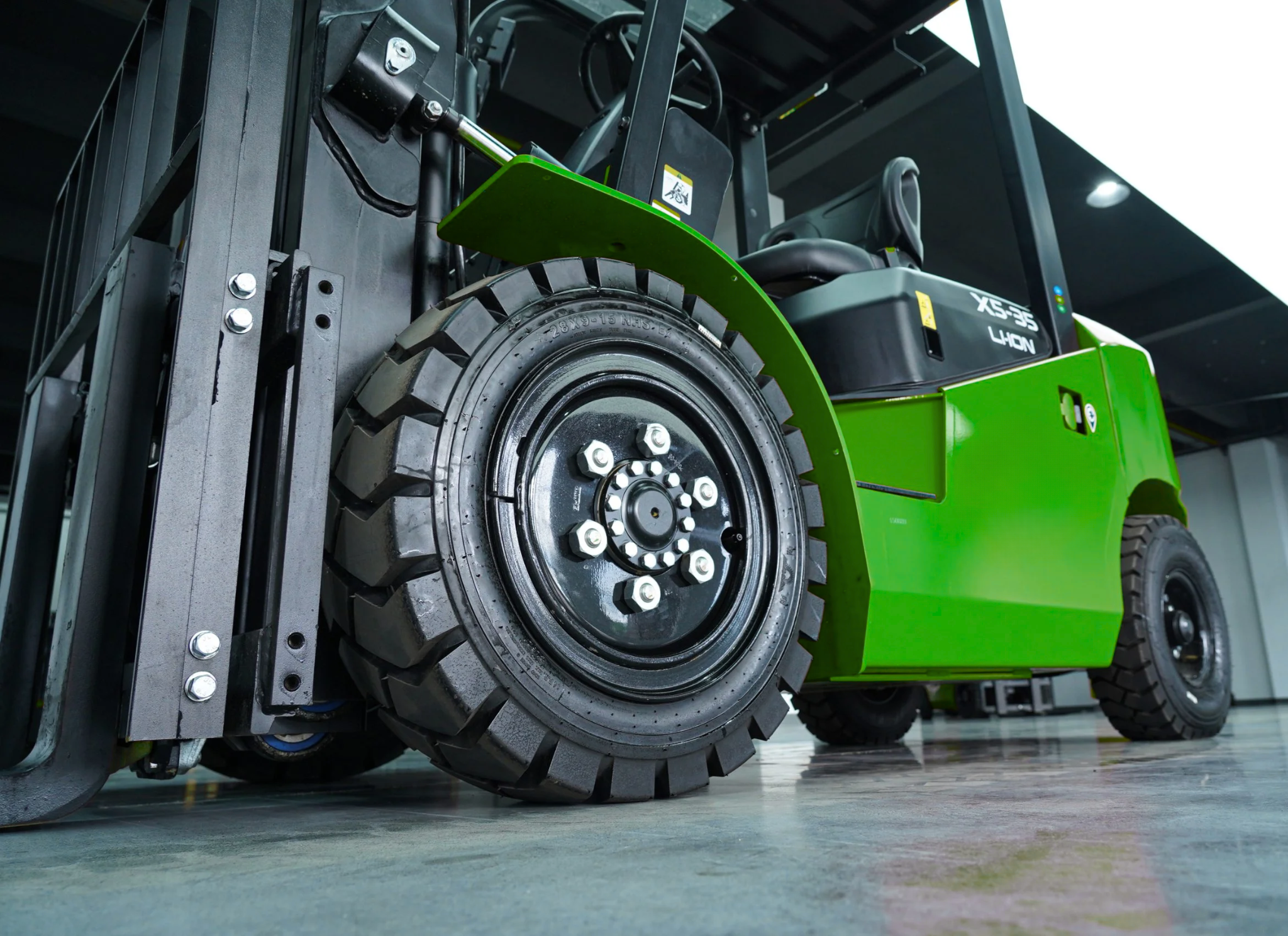

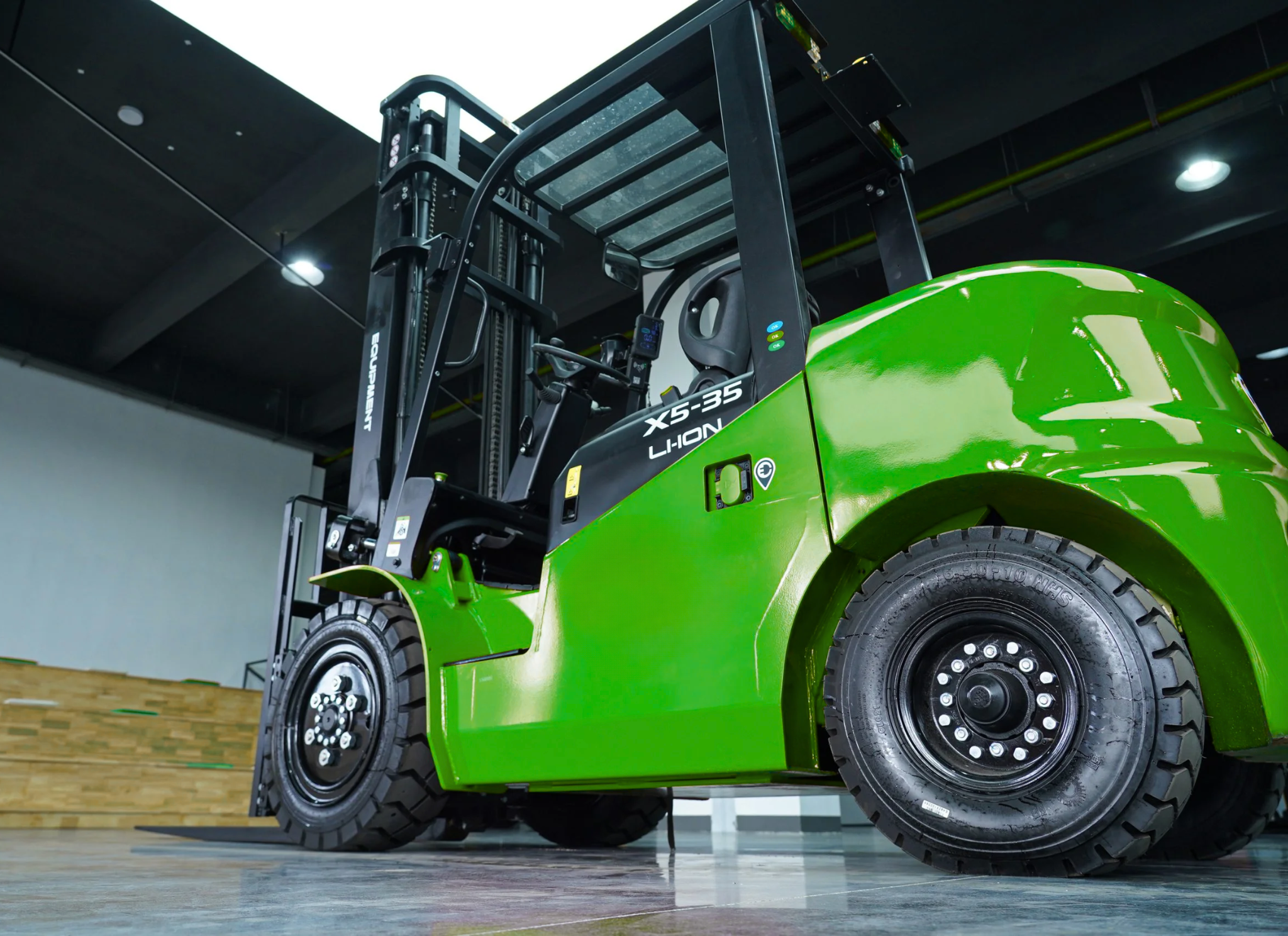

The X5 series provides higher ground clearance of 150mm and big tyres, protecting the forklift from getting stuck on ramps, potholes and mud. It’s a workhorse to handle loads on all terrains.
Ergonomic design for easy and comfortable operation

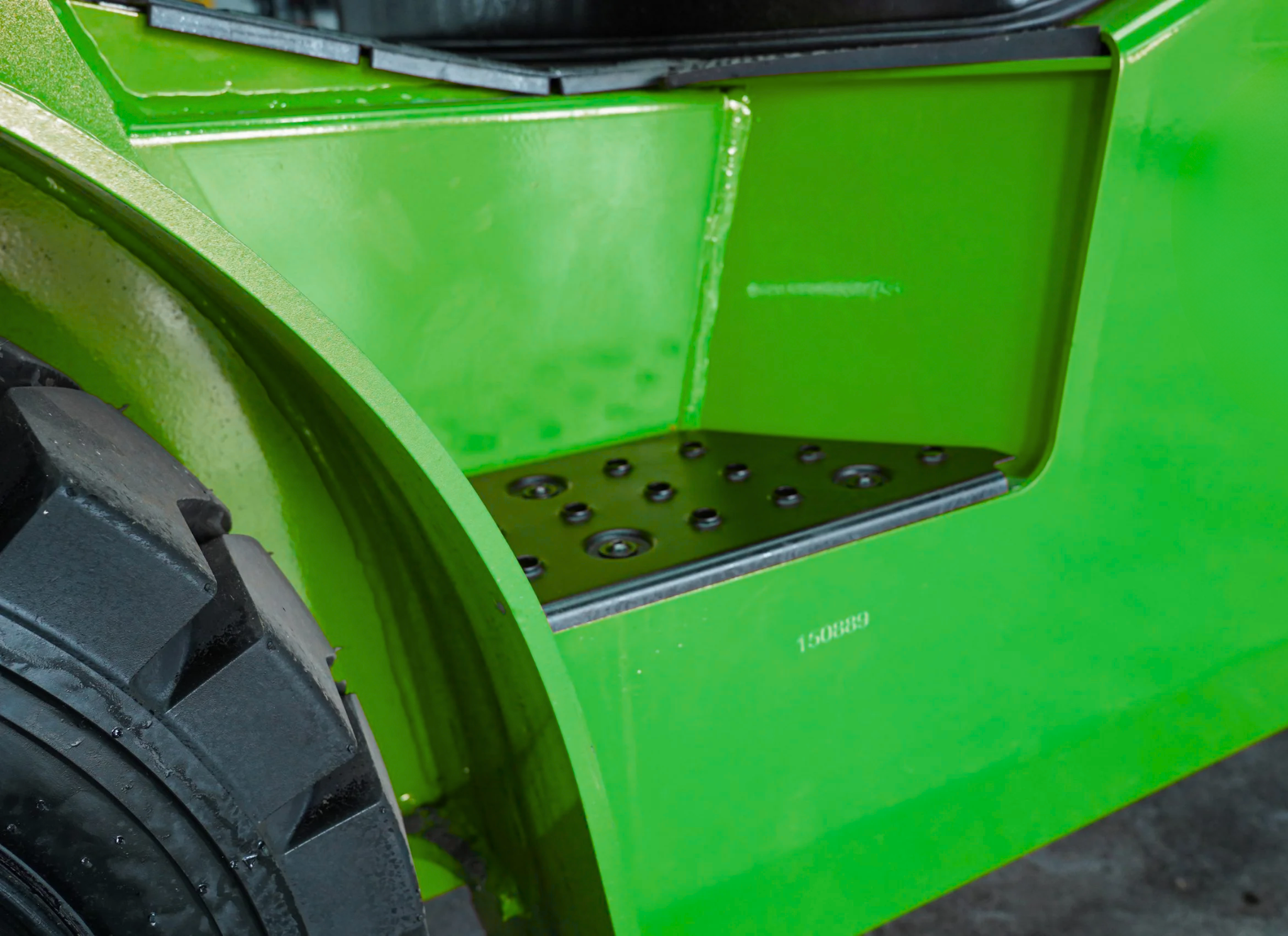

The X5 series comes with the proportional lifting system as standard, which provides precise and smooth control . Besides, the widen brake pedal offers more comfortable operation experience, and the large LED display provides clearer view on the truck status information for easy operation.
Resources
Our product portfolio
CAPACITY
3000KG
BATTERY
80V/280AH Standard; 80V/280Ah*2 Optional
LIFTING SPEED,LOADED/UNLOADED
0.45/0.55M/S
LOWERING SPEED, LOADED/UNLOADED
0.5/0.44M/S
GROUND CLEARANCE, CENTRE OF WHEELBASE
150MM
SERVICE WEIGHT
4820KG
OVERALL WIDTH
1230MM
LENGTH TO THE FACE OF FORKS
2706MM
TURNING RADIUS
2458MM
CAPACITY
3000KG
BATTERY
80V230AH
LIFTING SPEED,LOADED/UNLOADED
0.4/0.5M/S
LOWERING SPEED, LOADED/UNLOADED
0.43/0.44M/S
GROUND CLEARANCE, CENTRE OF WHEELBASE
180MM
SERVICE WEIGHT
4305KG
OVERALL WIDTH
1210MM
LENGTH TO THE FACE OF FORKS
2540MM
TURNING RADIUS
2347MM
